ASUS | SKU:
90MB1PI0-M0EAY0

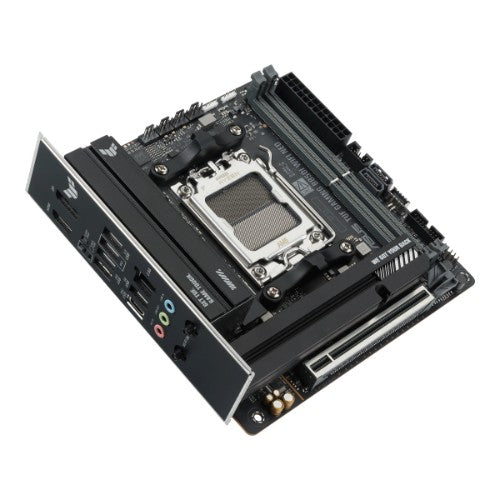

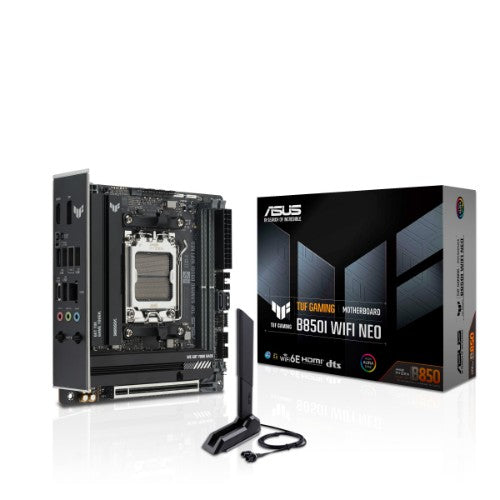

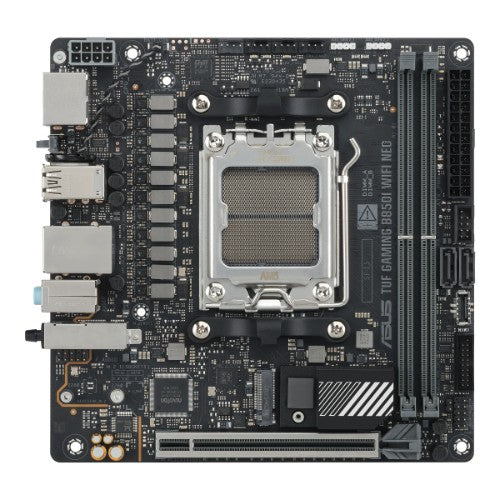

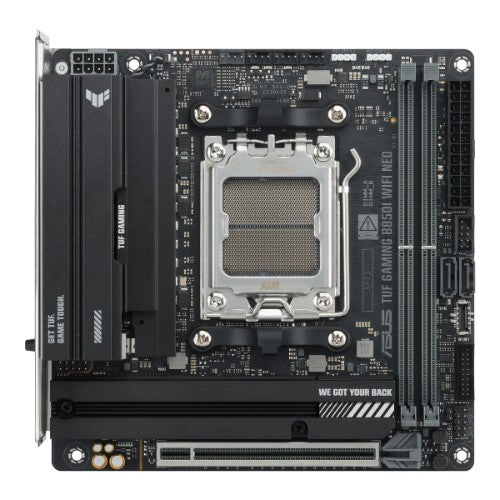

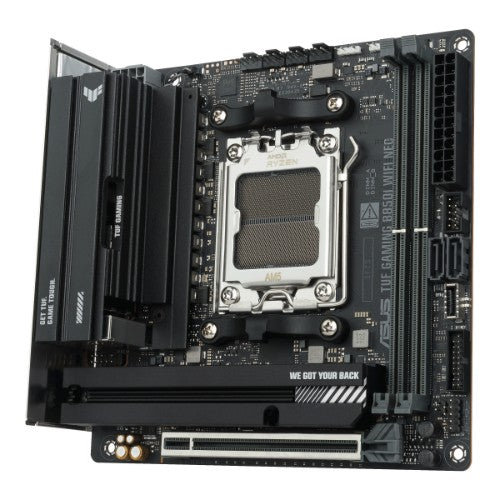

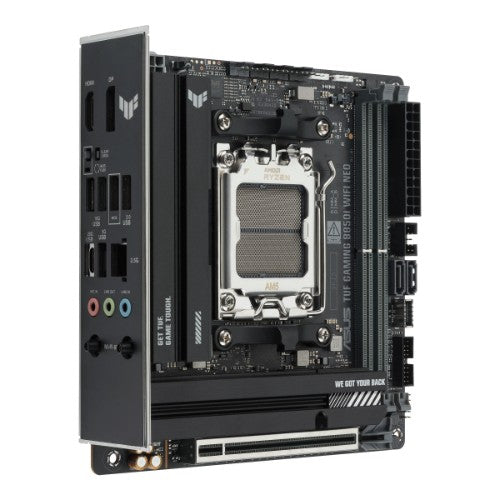

ASUS TUF GAMING B850I WIFI NEO AMD B850 Socket AM5 mini ITX
€178.24
Unit price
/
Unavailable
Shipping calculated at checkout.
ASUS TUF GAMING B850I WIFI NEO AMD B850 Socket AM5 mini ITX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
TUF GAMING B850I WIFI NEO AMD B850 Mini-ITX motherboard (8+2+1 80-A DrMOS power stages, DDR5, PCIe 5.0 capable, two M.2 slots, Wi-Fi 6E, Realtek 2.5 Gb Ethernet, HDMI, DisplayPort, up to 20 Gbps Type-C rear & USB 10 Gbps Type-C front, Clear CMOS button, BIOS FlashBack, 32 MB BIOS, Aura Sync)
Description
ASUS TUF GAMING B850I WIFI NEO brings TUF GAMING performance to the Mini-ITX form factor for the first time. Designed for the latest AMD Ryzen™ processors, it features a premium 10-layer server-grade circuit board with 2-ounce low-loss copper power planes for enhanced signal integrity and stable power delivery. Built with military-grade components, durable architectures, and a balanced power solution, this compact motherboard delivers the rock-solid reliability, speed and connectivity that gaming and advanced AI PC applications demand.Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 2 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 9600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |

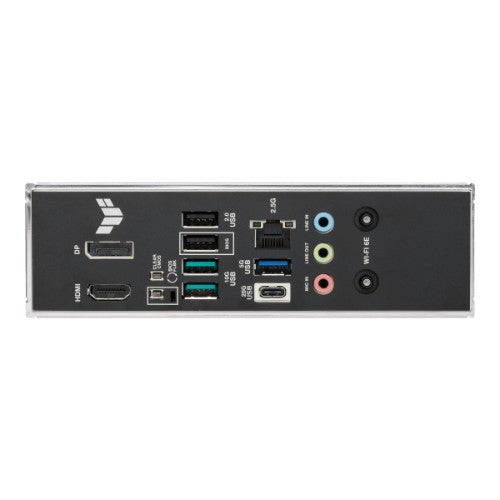

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| VGA (D-Sub) ports quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| BIOS flashback button | Yes |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 7680 x 4320 pixels |
| Packaging data | |
| Package width | 219 mm |
| Package depth | 277 mm |
| Package height | 107 mm |
| Package weight | 1.32 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Height | 44 mm |
| Package width | 219 mm |
| Package depth | 277 mm |
| Package height | 107 mm |
| Package weight | 1.32 kg |
| Weight | 720 g |
| Width | 170 mm |
| Depth | 170 mm |

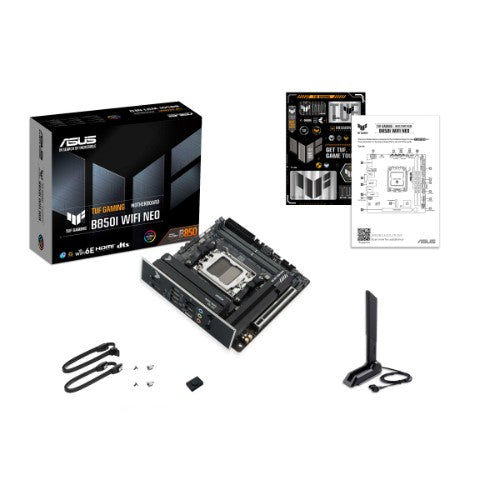

| Packaging content | |
| Quick installation guide | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 44 mm |
| Package width | 219 mm |
| Package depth | 277 mm |
| Package height | 107 mm |
| Package weight | 1.32 kg |
| Weight | 720 g |
| Quick installation guide | Yes |
