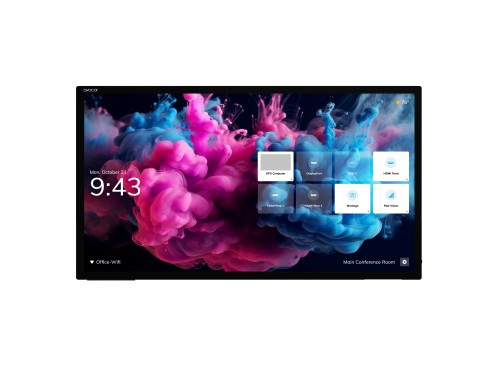

Avocor AVH-6520 H-Series - 65" 4K Pcap LED Interactive Display

Avocor H-20 Series 65" 4K Pcap LED Interactive Display

Key Features

• 4K Ultra HD
• 16:9 aspect ratio
• Sleek design with an ultra-thin Bezel
• Zero parallax optically bonded glass surface for pixel-perfect inking
• Presence Detection Sensor
• Single Type-C connectivity delivering audio, video, touch, Ethernet and power
• Intel OPS PC slot for expanded functionality
• Avocor UiQ - smart touch enabled dynamic user interface
• FUSE - Remote management software platform for AV/IT Managers
• Elegant Design for Contemporary Spaces
• Optimized Display for Immersive Experiences
• Advanced Touch Technology for Collaborative Work
• Seamless Integration and Versatile Connectivity
• Dynamic Software for Enhanced Communication

Description

The Avocor H Series redefines interactive displays for modern workspaces, emphasizing seamless collaboration and connectivity. With its ultra-thin bezel and sophisticated design, it integrates effortlessly into professional environments, enhancing aesthetic appeal and functional utility. This sleek design, devoid of visible buttons or inputs, maintains a sophisticated and uncluttered profile, perfectly complementing the aesthetic standards of today's workspaces. Across all models (65", 75", and 86"), the H Series boasts a high-resolution 4K display, bringing life to content with unparalleled clarity.

The Avocor H Series has a premium feel that will enhance any meeting room, and the technology needed to accommodate high collaboration in hybrid workspaces.

Ensure every in-person and remote interaction provides a natural and intuitive meeting experience with the Avocor H Series, the perfect solution for organizations that demand both a luxury aesthetic and a high performing functional workspace.

In the hybrid work era, the H Series excels in corporate settings with its sleek design and advanced touch technology, enhancing collaboration among remote and in-office teams. Its easy installation and FUSE-powered remote management streamline IT operations, while diverse connectivity options ensure seamless device integration. The addition of Montage and Rise Vision transforms idle screens into dynamic communication hubs, keeping all team members engaged and informed, thus embodying a versatile solution for modern corporate challenges.

Specifications

Display
Display diagonal	165.1 cm (65")
Contrast ratio (typical)	5000:1
Touchscreen	Yes
Touchscreen type	Capacitive
Number of simultaneous touchpoints	40
Panel type	LCD
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	6.5 ms
Touch technology	Multi-touch
Screen glass thickness	2 mm
Display brightness	400 cd/m²
Display resolution	3840 x 2160 pixels
Display number of colours	1.07 billion colours
HD type	4K Ultra HD
LED backlighting type	Direct-LED
Maximum refresh rate	60 Hz
Anti-glare screen	Yes
Native aspect ratio	16:9
Pen & touch differentiation	Yes
Palm rejection	No
Palm erase	No
LED backlight	Yes
Features
Display diagonal	165.1 cm (65")
Contrast ratio (typical)	5000:1
Touchscreen	Yes
Touchscreen type	Capacitive
Number of simultaneous touchpoints	40
Panel type	LCD
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	6.5 ms
Touch technology	Multi-touch
Screen glass thickness	2 mm
Display brightness	400 cd/m²
Display resolution	3840 x 2160 pixels
Display number of colours	1.07 billion colours
HD type	4K Ultra HD
LED backlighting type	Direct-LED
Maximum refresh rate	60 Hz
Anti-glare screen	Yes
Native aspect ratio	16:9
Pen & touch differentiation	Yes
Palm rejection	No
Palm erase	No
LED backlight	Yes
Product colour	Brushed steel
Country of origin	China
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker power	16 W
Built-in microphone	No
Network
Wi-Fi	Yes
Ethernet LAN	Yes
Antenna type	1x1
Wake-on-LAN ready	Yes
Ports & interfaces
USB connector type	USB Type-A, USB Type-B, USB Type-C
HDMI ports quantity	4
HDCP	Yes
Ethernet LAN (RJ-45) ports	2
RS-232 ports	1
USB Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 Type-B Touch ports quantity	3
USB 2.0 Type-A hub ports quantity	2
HDMI version	2.0
HDMI output ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.4
S/PDIF out port	Yes
HDCP version	2.3
Line-out	Yes
Audio output	1
USB Power Delivery up to	100 W
USB Power Delivery (USB PD)	Yes
OPS slot	1
Wi-Fi	Yes
Ethernet LAN	Yes
Ergonomics
Wall mountable	Yes
Product colour	Brushed steel
VESA mounting	Yes
Panel mounting interface	400 x 400 mm
Fanless	Yes
Performance
Proximity sensor	Yes
Ambient light sensor	Yes
Remote control included	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	227 W
System requirements
Mac compatibility	Yes
Windows operating systems supported	Windows 10, Windows 11
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85%
Storage temperature (T-T)	20 - 85 °C
Technical details
Touchscreen	Yes
Panel type	LCD
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	6.5 ms
Quantity per pack	1 pc(s)
Country of origin	China
Warranty period	3 year(s)
Remote control included	Yes
Weight & dimensions
Width	1493 mm
Depth	80 mm
Height	877 mm
Weight	37 kg
Packaging data
Package width	1612 mm
Package depth	220 mm
Package height	1034 mm
Package weight	49 kg
Quantity per pack	1 pc(s)
Stylus included	Yes
Projector
Contrast ratio (typical)	5000:1
Packaging content
Cables included	HDMI, USB Type-A to USB Type-B, USB Type-C to USB Type-C
Stylus included	Yes
Quick start guide	Yes
Mounting brackets included	Yes
Remote control included	Yes
Batteries included	Yes
Stylus pen type	Passive
Number of stylus pens	2
Colour
Product colour	Brushed steel
Other features
Country of origin	China
Warranty period	3 year(s)
Logistics data
Country of origin	China
Warranty period	3 year(s)
