Axis | SKU:
01633-001
Axis 01633-001 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
€824.86
Unit price
/
Unavailable
Shipping calculated at checkout.
Axis 01633-001 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.

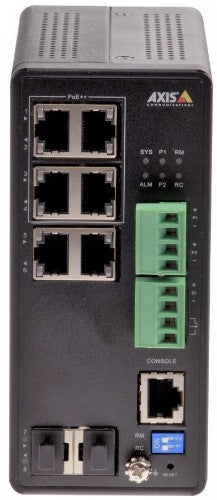

T8504-R INDUSTRIAL POE SWITCH
Key Features
- 60 W per port, 240 W power budget; Compliant with High PoE 60 W; Dual DC power redundancy; High availability with Rapid Ring; NEMA TS-2 compliant
Description
AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -40 °C to 75 °C (-40 °F to 167 °F), making it perfect for high demanding installations such as alongside highways and tunnels.Specifications
| Virtual LAN features | |
|---|---|
| VLAN support | Yes |
| Optical fiber | |
| Fiber optic connector | SFP |
| Power | |
| Power connector | DC-in jack |
| DC input voltage | 54 - 57 V |
| Surge protection | Yes |
| Technical details | |
| Product colour | Black |
| Housing material | Aluminium |
| Management features | |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1x |
| VLAN support | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 9216 |
| Throughput | 11.9 Mpps |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Security algorithms | HTTPS, SNMP, SNMPv3 |
| Password protection | Yes |
| Authentication type | RADIUS |
| Certificates | |
| Certification | EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003 |
| Design | |
| Product colour | Black |
| Housing material | Aluminium |
| Certification | EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003 |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 62 mm |
| Depth | 130 mm |
| Height | 135 mm |
| Weight | 600 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
