Axis 01752-012 Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Wall

Q6075-E, PTZ, HDTV 1080p, 1/2.8, WDR, IP66, IP67, IK10

Description

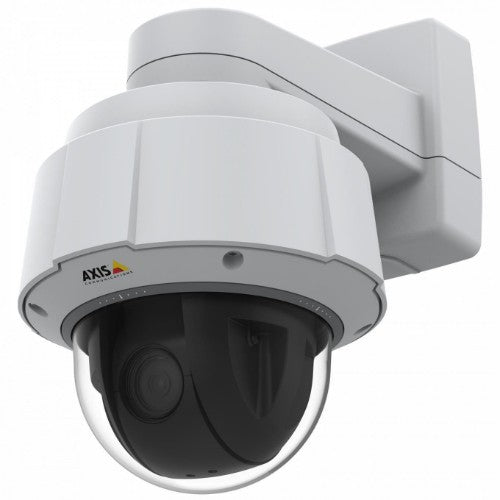

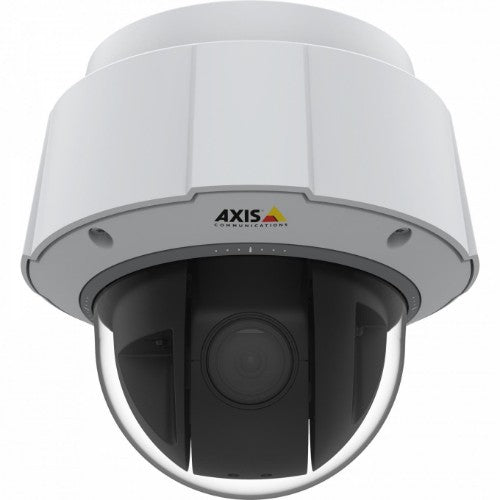

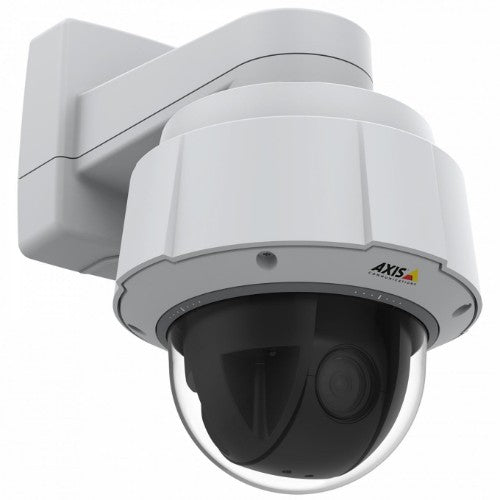

AXIS Q6075-E PTZ Network Camera

This robust, high-performance PTZ camera offers superior light-sensitivity for clear, sharp overviews and excellent details in demanding light conditions. It's ideal for mission-critical surveillance in wide, outdoor areas such as cities, industrial and critical infrastructure applications. Featuring the new generation Axis chip, it includes enhanced security features such as signed firmware and secure boot.

Superior details in demanding light conditions

AXIS Q6075-E delivers superior video quality in HDTV 1080p and 40x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.

Whenever, wherever it's needed

This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.

Keeping you secure

This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware ensures that only authorized firmware is installed and guarantees that it hasn't been compromised. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.

Specifications

Performance
Preset points	Yes
Infrared (IR) cut-off filter	Yes
Number of languages	11
Languages support	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Processor model	ARTPEC-7
Type	IP security camera
Connectivity technology	Wireless
PTZ control	Yes
Placement supported	Indoor & outdoor
Auto-tracking	Yes
Tour recording	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Design
IK code	IK10
Form factor	Dome
Product colour	Black, White
Mounting type	Wall
International Protection (IP) code	IP66, IP67
Housing material	Aluminium, Polycarbonate (PC)
Camera
Minimum illumination	0.1 lx
Tilt angle range	0 - 220°
Tilt speed	450 °/sec
Pan range	0 - 360°
Pan speed	450 °/sec
Camera shutter speed	1/11000 - 1/3 s
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	65.1 – 2.00
Lens viewing angle, vertical	39.1 – 1.18
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Number of sensors	1
Lens system
Number of lenses	1
Maximum aperture number	4.95
Auto focus	Yes
Minimum aperture number	1.6
Zoom capability	Yes
Optical zoom	40x
Digital zoom	12x
Focal length range	4.25 - 170 mm
Night vision
Night vision	Yes
Video
Image quality adjustment	Brightness, Colour depth, Sharpness
Text caption overlay	Yes
Privacy masking	Yes
Back Light Compensation (BLC)	Yes
Video compression formats	H.264, H.265
Maximum resolution	1920 x 1080 pixels
Supported graphics resolutions	320 x 180, 1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	60 fps
Video streaming	Yes
Video recording	Yes
Network
Bluetooth	No
Networking standards	IEEE 802.1x
Quality of Service (QoS) support	Yes
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa , TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Storage
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	SD, SDHC, SDXC
Internal memory	1024 MB
Flash memory	512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wireless
Security
Alert notification type	E-mail
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Password protection	Yes
Pixel counter	Yes
Digest authentication	Yes
Power
Power source type	AC, PoE
Power consumption (max)	66.1 W
Power consumption (Power over Ethernet (PoE))	60 W
AC input voltage	100 - 240 V
Power consumption (typical)	14 W
Operational conditions
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Height	271 mm
Diameter	23.2 cm
Weight	3.75 kg
Packaging content
Number of cameras	1
Manual	Yes
Technical details
Doesn't contain	PVC
Warranty period	5 year(s)
Other features
Video compression formats	H.264, H.265
Doesn't contain	PVC
Warranty period	5 year(s)
