Axis | SKU:
02224-001

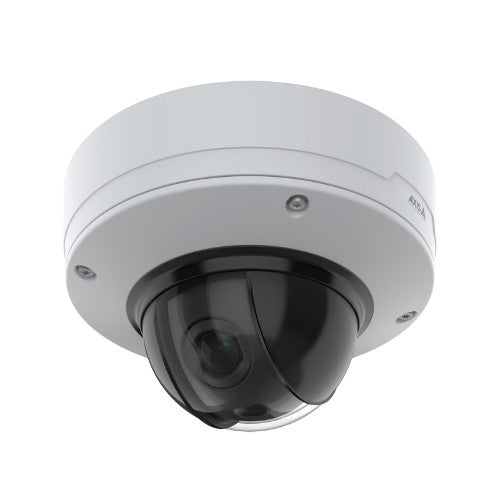

Axis 02224-001 security camera Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
€1,317.96
Unit price
/
Unavailable
Shipping calculated at checkout.
Axis 02224-001 security camera Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
2688x1512, 50/60 fps, 1/1.8, CMOS, 0.08 lux, PoE, IK10+, IP66, IP6K9K
Key Features
- Built-in cybersecurity features; IR-shielded dome to prevent reflections; Outstanding image quality in 4 MP; Support for analytics with deep learning
Description
With 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3536-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring consistently clear, sharp video. Based on the latest generation Axis system-on-chip (SoC), it offers advanced features and powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly nuanced object classification. This robust camera features redundant power, sensors for intrusion and shock detection, and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Design | |
| IK code | IK10+ |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Camera | |
| Minimum illumination | 0.08 lx |
| Tilt angle range | -43 - 80° |
| Angle of rotation | 175° |
| Camera shutter speed | 1/91000 - 1 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 2.6x |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 2688 x 1512 pixels |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Video recording | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, OPUS, PCM |
| Audio detection | Yes |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 2048 MB |
| Flash memory | 8194 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Security algorithms | 802.1x RADIUS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 23 W |
| Power consumption (typical) | 9 W |
| Certificates | |
| Certification | CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Diameter | 18.4 cm |
| Weight | 2.1 kg |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Manual | Yes |
| Drilling template included | Yes |
| Other features | |
| Video compression formats | H.264, H.265 |
