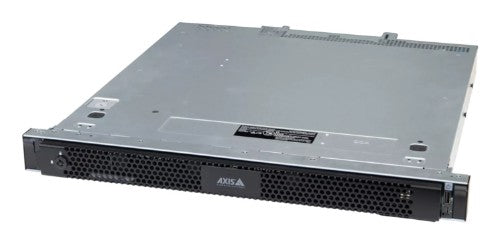

Axis Camera Station S1224 Rack Recording Server

Camera Station S1224 Rack Recording Server

Key Features

• Scalable and powerful solution
• One empty hard drive bay for storage expansion
• Optimized energy consumption
• 24 AXIS Camera Station licenses included

Description

Featuring powerful components, in a 1U rack form factor this recording server offers support for powerful applications and features. This secure device complies with government policies and uses a Trusted Platform Module (TPM) that is FIPS 140-2 level 2, which increases the security of the product and ensures recorded video is stored encrypted on the hard drive. It comes with a built-in operating system recovery stored on the device, to make it easier to recover data if needed.

Flexible, scalable solution
AXIS S1224 Rack is ideal for demanding applications. With great scalability, it’s easy to expand your system as it grows without the need for additional hardware. It includes 24 AXIS Camera Station Pro licenses and provides 10 AXIS Audio Manager Pro licenses when installing the software to the server. You can expand your system up to a recording bitrate of 300 Mbit/s (approximately 32 channels) . AXIS S1224 Rack is available with 12 TB storage and can easily be expanded with one additional hard drive available as optional accessory, based on your specific requirements.

Quality and ease-of-use
This reliable recording server and client comes pre-loaded with AXIS Camera Station Pro licenses and all necessary software, so there’s no need to spend time selecting, configuring, and testing hardware. Plus, with services such as Keep Your Hard Drive and Next Business Day Onsite Support*, as well as a 5-year warranty, you can depend on Axis for first-class quality, reliability, and support. Part of an Axis end-to-end solution, all supported products are available in one price list for a one-stop-shop experience. Furthermore, with an intuitive installation wizard and AXIS Recorder Toolbox, AXIS S1224 help ensure every installation is trouble-free.

Specifications

Processor
Processor family	Intel® Xeon®
Processor manufacturer	Intel
Memory
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Storage
Number of HDDs supported	2
HDD interface	SATA
Hot-swap drive bays	No
RAID support	Yes
RAID levels	0, 1
Total storage capacity	12 TB
Number of HDDs installed	1
HDD capacity	12 GB
Hot-swap	No
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Features
Operating system installed	Windows 11 IoT Enterprise LTSC 2024
Ethernet LAN data rates	1000 Mbit/s
Design
Chassis type	Rack
LED indicators	Yes
Rack capacity	1U
Power
Power consumption (typical)	55 W
Power supply	450 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	70 W
Technical details
Compliance certificates	RCM, ICES, VCCI, Korean Industrial Standards (KS), Federal Communications Commission (FCC), RoHS, REACH
Weight & dimensions
Width	482 mm
Depth	496.8 mm
Height	42.8 mm
Weight	8.5 kg
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	8 - 80%
Packaging content
Cables included	AC
Rack mount kit	Yes
