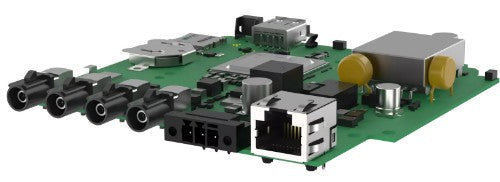

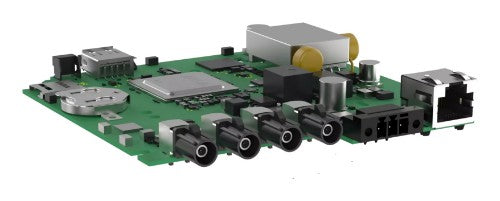

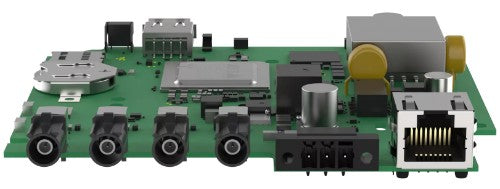

Axis F9104-B Mk II Base unit

3840 x 2160, 4 channels, 12/15 fps, FAKRA connectors

Key Features

• UL recognized component
• 4-channel main unit with up to 4K at 12/15 fps
• FAKRA connectors
• Support for powerful analytics
• Built-in cybersecurity with Axis Edge Vault

Description

This AI-powered, 4-channel barebone unit is ideal for integration into UL-certified end products. It offers up to 4K at 12/15 fps. And Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.

Flexible and cost-efficient
Sold without a casing, this UL-recognized barebone unit is perfect for integration into UL-certified end products. It offers up to four 4K channels at 12/15 fps per channel. With seven sensor units to choose from, you can use up to four different sensor units simultaneously. This main unit also ensures an improved total cost of ownership compared to conventional camera solutions. For instance, it requires only one video management software (VMS) license instead of four. What’s more, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements. And storage profile ensures the optimal level of Zipstream for your video storage - regardless of your VMS.

Gain valuable insights
Featuring a deep learning processing unit (DLPU), this AI-powered main unit lets you run advanced features and powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. Furthermore, this main unit includes a built-in USB port that’s prepared for future applications.

Protected from the inside and out
This four-channel barebone unit includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. Furthermore, FAKRA connectors provide a tight connection with the cable ensuring ruggedized installation.

Specifications

Features
Brand compatibility	Axis
Type	Base unit
Placement supported	Indoor
Product colour	Green
Networking standards	IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar
Wide Dynamic Range (WDR)	Yes
Memory card slot	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Built-in processor	Yes
Resolution	3840 x 2160 pixels
Image sensor
Resolution	3840 x 2160 pixels
Ports & interfaces
USB port	Yes
Connectivity technology	Wired
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
DC-in jack	Yes
Power
Input voltage	10 - 48 V
Power consumption (typical)	11.5 W
Power consumption (max)	25.5 W
Technical details
Type	Base unit
Placement supported	Indoor
Warranty period	5 year(s)
Weight & dimensions
Weight	115 g
Colour
Product colour	Green
Packaging data
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 95%
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 60 °C
