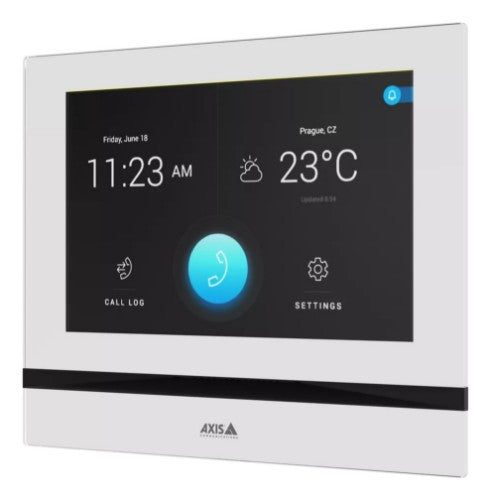

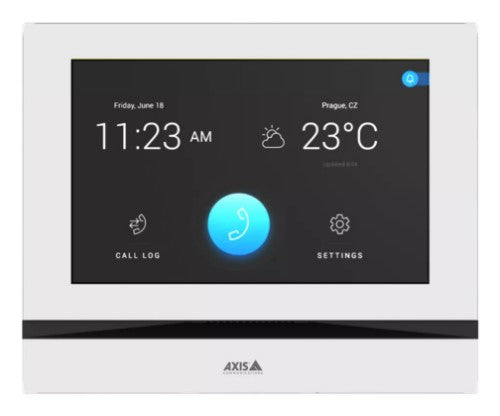

Axis I5304 video intercom system 17.8 cm (7") White

I5304 Network Answering Unit, Sleek, versatile communication device, White

Key Features

• Ideal for office and commercial use
• 7” touch screen
• High-quality video for visual verification
• Clear, two-way communication
• Powered by 2N OS

Description

This sleek IP phone allows receptionists and concierges to efficiently respond to calls from IP intercoms. It combines visual verification with clear, two-way communication so you can both see and hear who’s at the door.

Extra security at the door

Designed to work with Axis, 2N, and third-party intercoms, AXIS I5304 Answering Unit lets you hear and see your visitors, adding extra security at the door. It features a 7” touch screen to display high-quality video for reliable visual verification. Plus, two-way communication allows you to hear the conversation clearly.

Easy to use

Ideal for office and commercial use, AXIS I5304 Answering Unit makes life easier for receptionists and concierges. They can quickly and efficiently respond to calls from IP intercoms at the door. And with fast touch response, they can quickly open the door by simply touching a button on the display. This IP phone also displays a preview of the intercom’s camera. Furthermore, with a modern, sleek design, it’s available in both black and white.

Quick and flexible installation

AXIS I5304 ensures secure installation. With support for PoE, it requires just one cable for both power and connectivity so you can connect it directly to your network. And you can place it wherever you want—on a reception desk or mounted on walls or recessed mounted using accessories.

Specifications

Technical details
Wall mountable	Yes
Voice codecs	G.711, G.722, G.729
Streaming capability	Yes
Echo cancellation	Yes
Built-in speaker(s)	Yes
Built-in microphone	Yes
Display diagonal	17.8 cm (7")
Colour	Yes
Speakerphone	Yes
Certification	CSA, UL/cUL, CE, VCCI, RCM
Connectivity technology	Wired
Warranty period	5 year(s)
Display
Display technology	LCD
Display resolution	1024 x 600 pixels
Video formats supported	H.264, MPEG4
Touchscreen type	Capacitive
Touchscreen	Yes
Display diagonal	17.8 cm (7")
Audio
Voice codecs	G.711, G.722, G.729
Built-in speaker(s)	Yes
Design
Product colour	White
Housing material	Plastic
Network
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100Base-T(X)
Power over Ethernet (PoE)	Yes
Supported network protocols	IPv4, HTTP, HTTPS1, SIP 2.0, SIPS, SSL/TLS1, RTP, SRTP, RTSP, DHCP, NTP, TCP, IGMP, UDP, DNS, Syslog, FTP, SMTP, RTCP, ICMP, DHCPv4
Security algorithms	EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Power
Power consumption (standby)	12 W
Power consumption (typical)	2.9 W
Indoor unit power type	DC/PoE
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	193 mm
Height	157 mm
Weight	555 g
Packaging data
Indoor unit included	Yes
Outdoor unit included	No
Logistics data
Quantity per pack	1 pc(s)
