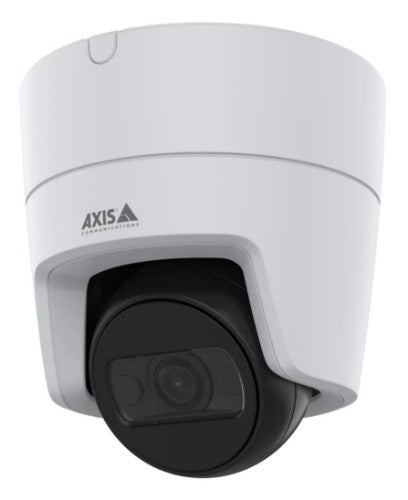

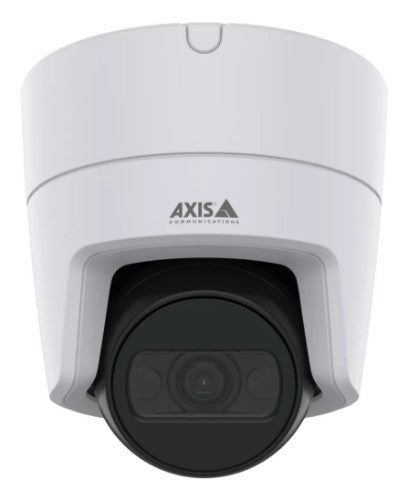

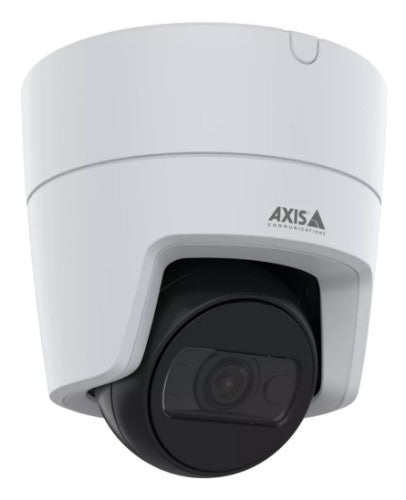

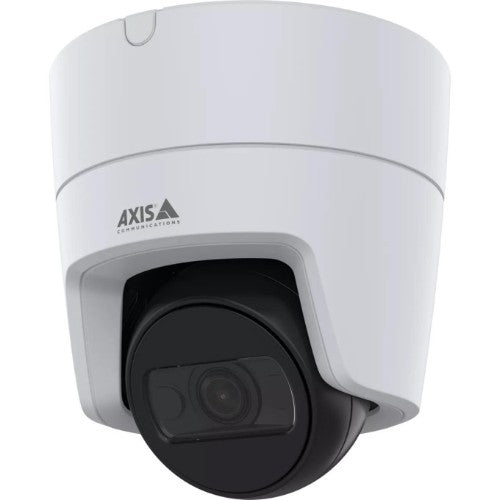

Axis M3128-LVE Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling

1/2.8" CMOS, 3840x2160px, 12/15 fps, 55 dB, IR, PoE, 10.5W, White

Key Features

• Great image quality in 4K
• WDR and OptimizedIR
• Available in black or white
• AI-based video analytics
• Built-in cybersecurity with Axis Edge Vault

Description

This turret-style, AI-powered dome camera delivers great 8 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.

Great image quality
AXIS M3128-LVE offers great 8 MP resolution with 110° field of view. Built-in OptimizedIR allows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there’s no need for extra lighting—you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene.

Powerful with strong security
Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.

Flexible and outdoor-ready
This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it’s available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).

Specifications

Performance
Infrared (IR) cut-off filter	Yes
PTZ modes	Digital PTZ
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CSA, UL/cUL, BIS, CE, KC, EAC, VCCI, RCM, BSMI EN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES(A)/NMB(A) Japan: VCCI Class A Korea: KC KN35, KC KN32 Class A, KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A
Design
Weatherproof	Yes
IK code	IK08
Form factor	Dome
Product colour	White
Mounting type	Ceiling
Protection features	Impact resistant, Weather resistant
International Protection (IP) code	IP66
Housing material	Plastic
Camera
Minimum illumination	0.22 lx
Tilt angle range	0 - 60°
Pan range	-180 - 180°
Angle of rotation	95°
Camera shutter speed	1/71500 - 2 s
Camera pixel size	1.45 µm
Vertical field of view (thermal module)	60°
Horizontal field of view (thermal module)	110°
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Number of sensors	1
Panoramic camera
Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB
Lens system
Number of lenses	1
Recognize distance (wide)	16 m
Observe distance (wide)	31.7 m
Identify distance (wide)	8 m
Detect distance (wide)	80 m
Normal focusing range	0.5 m
Focal length range	2.9 mm
Night vision
Night vision	Yes
Night vision distance	20 m
LED type	IR
Infra-red wavelength	850 nm
Video
Video compression formats	MPEG, MPEG4
Maximum resolution	3840 x 2160 pixels
Video formats supported	AVC, H.264, H.265, HEVC
Supported graphics resolutions	160 x 90, 3840 x 2160
Supported video modes	1080p
Frame rate	15 fps
Video streaming	Yes
Audio
Built-in speaker(s)	Yes
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	55 dB
Audio system	2-way
Audio formats supported	AAC-LC, ADPCM, LPCM, PCM
Network
Networking standards	IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory	2048 MB
Flash memory	512 MB
Ports & interfaces
Connectivity technology	Wired
Security
Intelligent Video Surveillance (IVS) system features	Human detection, Vehicle detection
Video motion detection	Yes
Security algorithms	HTTPS
Active tampering alarm	Yes
Password protection	Yes
Pixel counter	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Power
Power source type	PoE
Power consumption (max)	10.5 W
Power consumption (typical)	4.3 W
Certificates
Certification	CSA, UL/cUL, BIS, CE, KC, EAC, VCCI, RCM, BSMI EN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES(A)/NMB(A) Japan: VCCI Class A Korea: KC KN35, KC KN32 Class A, KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Height	93 mm
Diameter	10.1 cm
Weight	390 g
Sustainability
Compliance certificates	Electromagnetic Compatibility (EMC), Trade Agreements Act (TAA)
Packaging content
Number of cameras	1
Manual	Yes
Technical details
Doesn't contain	PVC
Compliance certificates	Electromagnetic Compatibility (EMC), Trade Agreements Act (TAA)
Other features
Video compression formats	MPEG, MPEG4
Doesn't contain	PVC
