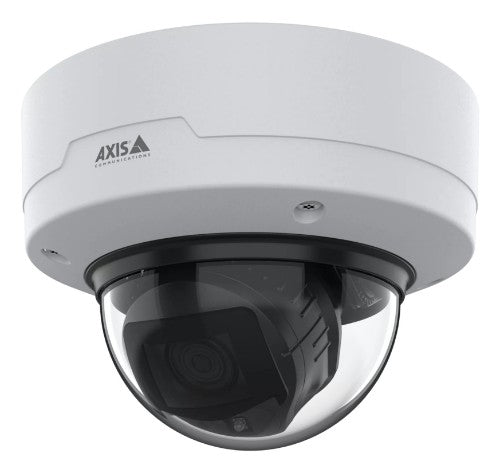

Axis P3277-LVE Mic Dome IP security camera Outdoor 2592 x 1944 pixels Ceiling/wall

Dome, 5 MP, CMOS, 2592 x 1944, IP66, IK10, DC/PoE

Key Features

• Excellent image quality in 5 MP
• Next-generation AI-powered analytics
• Lightfinder 2.0 and Forensic WDR
• Variant with built-in microphone
• Built-in cybersecurity with Axis Edge Vault

Description

Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. Plus, it's available with a built-in microphone, so it's out-of-the-box-ready for AXIS Audio Analytics.

Excellent image quality
AXIS P3277-LVE offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera includes a built-in audio jack so it’s possible to connect a microphone for audio support.

Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. And, AXIS P3277-LVE Mic is available with a built-in microphone, so it’s out-of-the-box-ready for AXIS Audio Analytics. Furthermore, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.

Robust with strong security
This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It features a built-in weathershield and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Processor model	ARTPEC-9
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Built-in processor	Yes
Dynamic range	120 dB
Design
IK code	IK10
Form factor	Dome
Product colour	White
Mounting type	Ceiling/wall
LED indicators	Yes
International Protection (IP) code	IP66
Housing material	Plastic, Polycarbonate (PC)
Camera
Minimum illumination	0.03 lx
Tilt angle range	-45 - 80°
Pan range	-190 - 190°
Angle of rotation	95°
Camera shutter speed	1/30500 - 2 s
Camera pan control	Yes
Camera tilt control	Yes
Camera pixel size	2 µm
Lens viewing angle, horizontal	104 - 34°
Lens viewing angle, vertical	76 - 26°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Number of sensors	1
Lens system
Maximum aperture number	2.58
Auto focus	Yes
Recognize distance (wide)	12 m
Recognize distance (tele)	34 m
Observe distance (wide)	24 m
Observe distance (tele)	67 m
Identify distance (wide)	6 m
Identify distance (tele)	17 m
Detect distance (wide)	60 m
Detect distance (tele)	170 m
Minimum aperture number	1.38
Zoom capability	Yes
Focal length range	3 - 8.5 mm
Night vision
Night vision	Yes
Night vision distance	40 m
LED type	IR
Infra-red wavelength	850 nm
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness, White balance
Text caption overlay	Yes
Gain control type	Auto
Noise reduction technology	2D noise reduction, 3D noise reduction
Video compression formats	H.264, H.265, M-JPEG
Maximum resolution	2592 x 1944 pixels
Frame rate	30 fps
Video streaming	Yes
Total megapixels	5 MP
Video recording	Yes
Audio
Built-in microphone	Yes
Audio system full duplex	Yes
Audio system	2-way
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support	Yes
Ethernet LAN	Yes
Wi-Fi	No
Storage
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8192 MB
RAM capacity	2048 MB
Ports & interfaces
Terminal block port	Yes
Microphone in	Yes
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Connectivity technology	Wired
Security
Video motion detection	Yes
Network access storage (NAS)	Yes
Management features
Cloud-managed	Yes
Power
Power source type	DC, PoE
Power consumption (max)	12.6 W
Power consumption (typical)	4.7 W
DC-in jack	Yes
DC output voltage	12
DC output current	0.025 A
Operational conditions
Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	850 g
Packaging content
Number of cameras	1
Mounting kit	Yes
Manual	Yes
Other features
Video compression formats	H.264, H.265, M-JPEG
