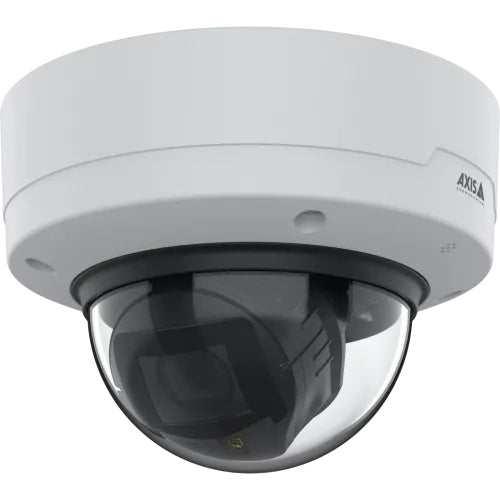

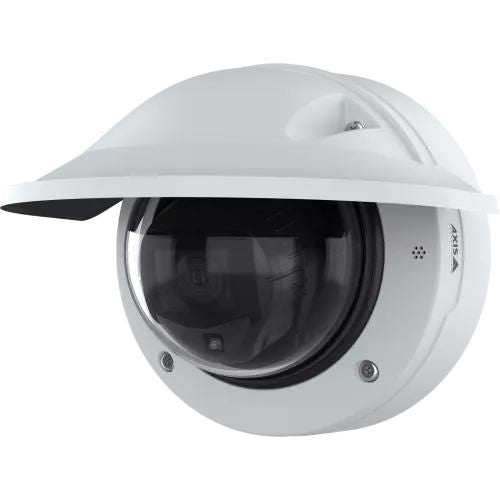

Axis P3287-LVE Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall

CMOS, 1/2.8", 0.10 lux, 2592x1944, 25/30, 3.0 - 8.5 mm, 104-34 °

Key Features

• Excellent image quality in 5 MP
• Next-generation AI-powered analytics
• Lightfinder 2.0 and Forensic WDR
• AXIS Audio Analytics preinstalled
• Built-in cybersecurity with Axis Edge Vault

Reasons To Buy

Excellent image quality

AXIS P3287-LV offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Powerful analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you'll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy.

Robust with strong security

This robust, IK10- and NEMA 4X-rated indoor camera is both vandal- and impact-resistant. It has a built-in intrusion switch that can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.

Description

Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Specifications

Performance
PTZ modes	Digital PTZ
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Indoor & outdoor
Auto-tracking	Yes
Tour recording	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC
Design
Weatherproof	Yes
IK code	IK10
Form factor	Dome
Product colour	Black, White
Mounting type	Ceiling/wall
Protection features	Impact resistant, Vandal proof
LED indicators	Yes
International Protection (IP) code	IP66
Housing material	Plastic, Polycarbonate (PC)
Camera
Minimum illumination	0.02 lx
Tilt angle range	-45 - 80°
Pan range	-190 - 190°
Angle of rotation	190°
Camera shutter speed	1/30500 - 2 s
Camera pan control	Yes
Camera tilt control	Yes
Camera pixel size	2 µm
Lens viewing angle, horizontal	34°
Lens viewing angle, vertical	26°
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Number of sensors	1
Lens system
Number of lenses	1
Maximum aperture number	1.76
Auto focus	Yes
Recognize distance (wide)	12 m
Recognize distance (tele)	34 m
Observe distance (wide)	24 m
Observe distance (tele)	67 m
Identify distance (wide)	6 m
Identify distance (tele)	17 m
Detect distance (wide)	60 m
Detect distance (tele)	170 m
Minimum aperture number	1.7
Zoom capability	Yes
Lens diameter	2.9 cm
Focal length range	3 - 8.5 mm
Night vision
Night vision	Yes
Night vision distance	45 m
LED type	IR
Infra-red wavelength	850 nm
Video
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Text caption overlay	Yes
Flip & mirror	Yes
Bit rate control	Variable Bit Rate (VBR)
Noise reduction technology	2D noise reduction, 3D noise reduction
Maximum resolution	2592 x 1944 pixels
Video formats supported	AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 800 (WXGA), 1440 x 1080, 1920 x 1080 (HD 1080), 2592 x 1944
Frame rate	30 fps
Video streaming	Yes
Total megapixels	5 MP
Audio
Signal-to-Noise Ratio (SNR)	55 dB
Audio detection	Yes
Network
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Streaming method	Multicast
Ethernet LAN	Yes
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8000 MB
RAM capacity	2000 MB
Ports & interfaces
Terminal block port	Yes
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Privacy protection	Yes
Alert notification type	E-mail
Video motion detection	Yes
Security algorithms	256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP
Active tampering alarm	Yes
Pixel counter	Yes
Human and vehicle targets classification	Yes
Management features
Behavior analysis	Line crossing detection
Power
Power source type	PoE
Power consumption (max)	12.6 W
Power consumption (typical)	4.7 W
Certificates
Certification	UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	820 g
Sustainability
Compliance certificates	REACH, RoHS, Trade Agreements Act (TAA)
Packaging content
Number of cameras	1
Sun shield included	Yes
Manual	Yes
Technical details
Doesn't contain	CFR, PVC, PVC/BFR
Compliance certificates	REACH, RoHS, Trade Agreements Act (TAA)
Other features
Doesn't contain	CFR, PVC, PVC/BFR
