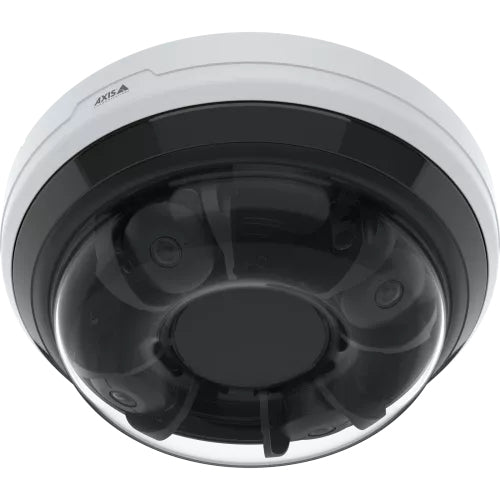

Axis P3748-PLVE Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall

4 x 8 MP, 3840 x 2160, CMOS, IP66

Key Features

• 4*8 MP at 12.5/15 fps per channel
• Remote pan, tilt, roll, zoom (PTRZ)
• Support for powerful analytics
• 360° IR illumination with individually controlled LEDs
• Built-in cybersecurity with Axis Edge Vault

Description

AXIS P3748-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration.

Wide area surveillance with high-quality overview—24/7
Ideal for expansive outdoor areas, AXIS P3748-PLVE offers four channels with 8 MP per channel at 12.5/15 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.

Brilliant design for cost-effective installation

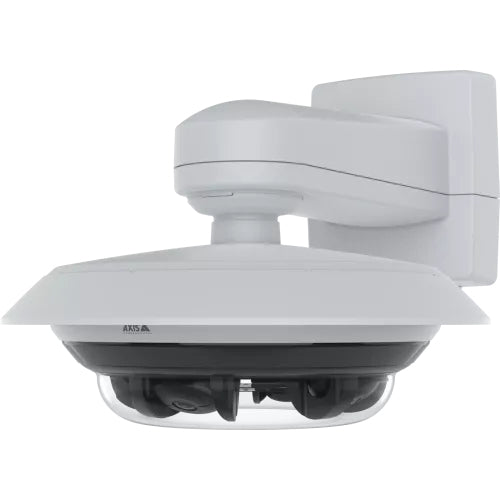

This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there’s no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.

Powerful with strong security
This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.

Specifications

Performance
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Design
IK code	IK10
Form factor	Dome
Product colour	Black, White
Mounting type	Ceiling/wall
International Protection (IP) code	IP66
Camera
Minimum illumination	0.4 lx
Tilt angle range	-23 - 0°
Pan range	-180 - 180°
Camera shutter speed	1/14000 - 1/2 s
Camera pan control	Yes
Camera tilt control	Yes
Camera pixel size	1.4 µm
Lens viewing angle, horizontal	360°
Lens viewing angle, vertical	54 - 23°
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 2.9 mm (1 / 2.9")
Lens system
Number of lenses	4
Auto focus	Yes
Recognize distance (wide)	17.3 m
Recognize distance (tele)	46.1 m
Observe distance (wide)	34.3 m
Observe distance (tele)	91.5 m
Identify distance (wide)	8.6 m
Identify distance (tele)	23 m
Detect distance (wide)	86.4 m
Detect distance (tele)	230.5 m
Zoom capability	Yes
Focal length range	3.18 - 7.42 mm
Night vision
Night vision	Yes
Video
Noise reduction technology	2D noise reduction, 3D noise reduction
Video compression formats	H.264, H.265
Maximum resolution	3840 x 2160 pixels
Frame rate	15 fps
Video streaming	Yes
Total megapixels	8 MP
Audio
Signal-to-Noise Ratio (SNR)	55 dB
Audio detection	Yes
Network
Ethernet interface type	10 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN	Yes
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS1 , HTTP/ 2, TLS1 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSDXC, MicroSD (TransFlash), MicroSDHC
Flash memory	8192 MB
RAM capacity	4096 MB
Ports & interfaces
Connectivity technology	Wired
Power
Power source type	PoE
Power consumption (max)	23.6 W
Power consumption (typical)	10.9 W
Operational conditions
Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	3 kg
Packaging content
Number of cameras	1
Technical details
Doesn't contain	CFR, Brominated Flame Retardant (BFR), PVC
Other features
Video compression formats	H.264, H.265
Doesn't contain	CFR, Brominated Flame Retardant (BFR), PVC
