Axis | SKU:
02973-001

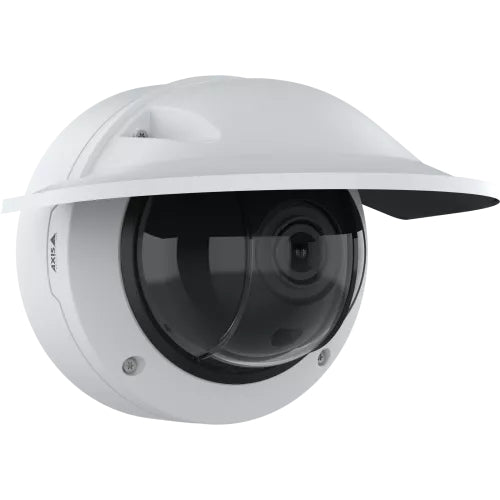

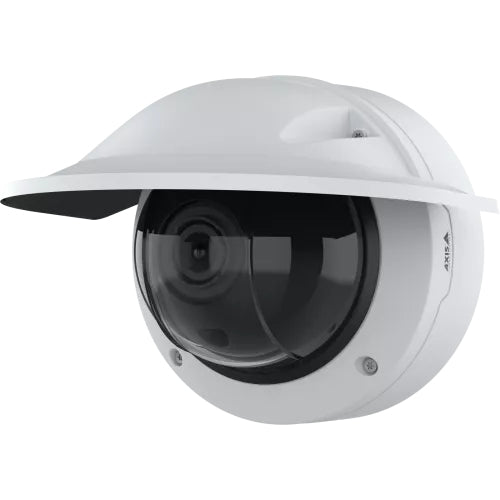

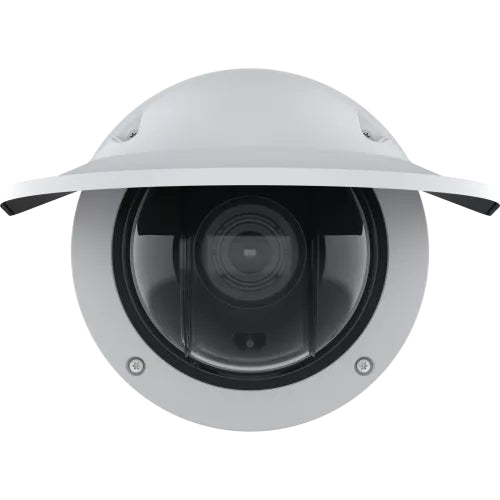

Axis Q3548-LVE Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall
€1,600.23
Unit price
/
Unavailable
Shipping calculated at checkout.
Axis Q3548-LVE Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Q3548-LVE Dome Camera, CMOS, 1/1.2", 0.04 lux, 3840 x 2160 pixels
Outstanding image quality
AXIS Q3548-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.
ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.
Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -50°C to 55 °C (-58 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.
Key Features
- Outstanding image quality in 8 MP
- Next-generation AI-powered analytics
- IR-shielded dome to prevent reflections
- Lightfinder 2.0 and Forensic WDR
- Built-in cybersecurity with Axis Edge Vault
Reasons To Buy
AV1 codec
A modern video encoding standard, optimized for video transmission over the internet.AXIS OS
Our operating system for edge devices built around openness, transparency and cybersecurity.Edge Vault
Hardware-based cybersecurity platform that safeguards your Axis device.Description
Built on ARTPEC-9, this robust AI-powered camera with support for AV1 codec offers accelerated performance to run impressive analytics applications on the edge. And Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.Outstanding image quality
AXIS Q3548-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.
ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.
Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -50°C to 55 °C (-58 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Protection features | Impact resistant, Vandal proof |
| LED indicators | Yes |
| International Protection (IP) code | IP66, IP6K9K |
| Housing material | Aluminium, Plastic |
| Camera | |
| Minimum illumination | 0.04 lx |
| Tilt angle range | -42 - 80° |
| Pan range | -180 - 180° |
| Angle of rotation | 360° |
| Camera shutter speed | 1/67500- 2 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Camera pixel size | 2.9 µm |
| Lens viewing angle, horizontal | 104° |
| Lens viewing angle, vertical | 56.7° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.2 mm (1 / 1.2") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2.9 |
| Auto focus | Yes |
| Recognize distance (wide) | 18 m |
| Recognize distance (tele) | 36 m |
| Observe distance (wide) | 35 m |
| Observe distance (tele) | 71 m |
| Identify distance (wide) | 9 m |
| Identify distance (tele) | 18 m |
| Detect distance (wide) | 88 m |
| Detect distance (tele) | 178 m |
| Closest focusing distance | 0.5 m |
| Minimum aperture number | 1.6 |
| Zoom capability | Yes |
| Optical zoom | 2x |
| Focal length range | 6.3 - 13 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 60 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Flip & mirror | Yes |
| Image stabilizer | Yes |
| Gain control type | Auto |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 1280 x 800 (WXGA), 2688 x 1512, 3840 x 2160 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 8 MP |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3at |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 4000 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Privacy protection | Yes |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Line crossing detection, Moving object |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS |
| Active tampering alarm | Yes |
| Human and vehicle targets classification | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 6.3 W |
| Certificates | |
| Certification | UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 239 mm |
| Depth | 211 mm |
| Height | 183 mm |
| Weight | 2.31 kg |
| Sustainability | |
| Compliance certificates | REACH, RoHS, Trade Agreements Act (TAA) |
| Packaging content | |
| Number of cameras | 1 |
| Sun shield included | Yes |
| Manual | Yes |
| Technical details | |
| Doesn't contain | CFR, PVC/BFR |
| Compliance certificates | REACH, RoHS, Trade Agreements Act (TAA) |
| Other features | |
| Doesn't contain | CFR, PVC/BFR |
