Axis S1132 Black

48 Channels, 1080p, 30 fps, 384 Mbit/s, 218x630x430mm, 22.9kg

Key Features

• Flexible storage options including RAID
• Optimized for Axis network products
• Quick system setup and intuitive operation
• Extensive support available
• AXIS Camera Station licenses included

Description

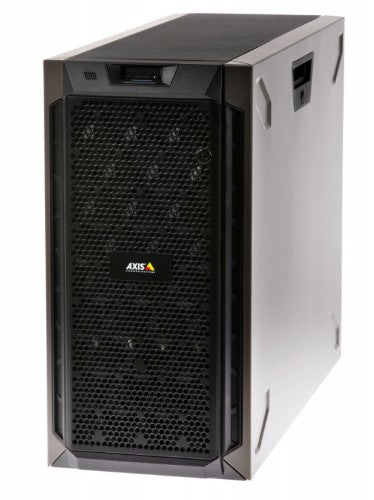

AXIS Camera Station S1132 Tower Recorder

AXIS Camera Station S1132 Tower Recorder is an out-of-the-box, ready-to-use recording solution for reliable high-definition surveillance. With a tower form factor and storage capacity of up to 64 TB, it’s ideal for office environments. A rack server version is also available for server room installations.

Out-of-the-box, ready-to-use

AXIS S1132 Tower comes with AXIS Camera Station licences and preloaded software, so out-of-the-box you get seamless and reliable integration to all your Axis network devices. AXIS Camera Station allows you to verify system performance at installation, so you can be sure your solution is effective and secure. And, with the integrated recording AXIS Recorder toolbox, you get easy access to a complete end-to-end solution with total control over your entire surveillance system.

High flexibility to meet your needs

AXIS Camera Station S1132 Tower Recorder has high storage flexibility allowing you to fully customize your system storage. It comes preconfigured with several industry-standard RAID levels (0/1/5/6/10) for reliable data storage and built-in protection against data loss. Plus, you can configure your system based on your specific redundancy and performance requirements. This solution is also validated to support as many as 16 additional camera licences, so you can easily expand your system as it grows.

High performance and reliability

AXIS S1132 Tower offers increased performance and contains a new generation CPU for fast processing of data. The operating system is stored on a Solid-State Drive (SSD) so system start-up is fast, and the operating system is safeguarded in the event of failure. It also includes a built-in recovery kit for quick and easy system recovery. With a dedicated graphics card, it can be used for live monitoring and video playback of ultra high-definition streams, on up to two monitors. And, with next business day on-site support and optional 5-year extended warranty, you can depend on first-class quality, reliability and support.

Specifications

Performance
Video input channels	48 channels
Maximum resolution	1920 x 1080 pixels
Built-in processor	Yes
Ethernet LAN data rates	1000 Mbit/s
Maximum frame rate	30 fps
Video recording modes	720p, 1080p
Input bandwidth	384 Mbit/s
Storage
Number of HDDs supported	8
Maximum storage capacity	32 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RAID levels	0, 1, 5, 6, 10, JBOD
USB 2.0 ports quantity	4
Ethernet LAN data rates	1000 Mbit/s
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Features
Certification	EN 55032 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR 32 Class A, VCCI Class A, KC KN 32 Class A, KC KN 35, IEC/EN/UL 60950-1, NOM, BSMI, EAC
Product colour	Black
Processor
Built-in processor	Yes
Power
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
System requirements
Windows operating systems supported	Windows 10
Weight & dimensions
Width	218 mm
Depth	630 mm
Height	430 mm
Weight	22.9 kg
