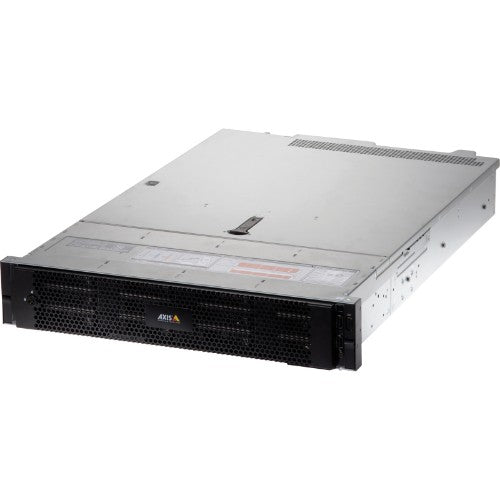

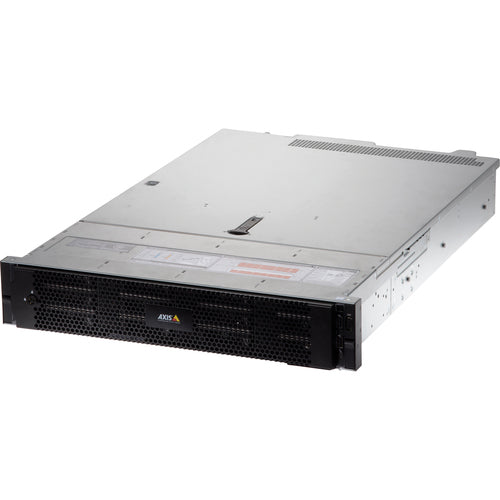

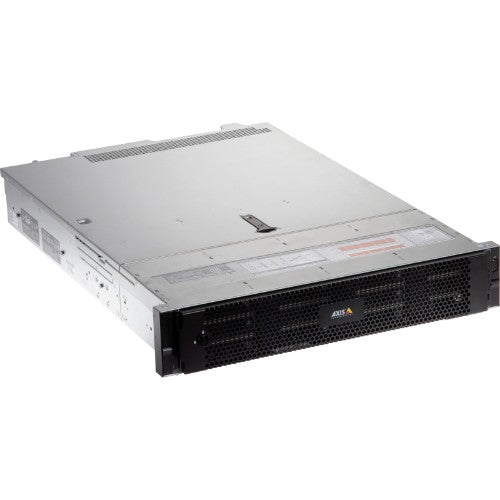

Axis S1148 2U Black, Grey

Camera Station S1148 Recorder, 48 Included licenses

Key Features

• Flexible storage options including RAID
• Optimized for Axis network products
• Quick system setup and intuitive operation
• Extensive support available
• AXIS Camera Station licenses included

Description

Out-of-the box ready server for high-definition surveillance

AXIS Camera Station S1148 Recorder is an out-of-the-box, ready-to-use recording solution designed to deliver reliable high-definition surveillance. This recorder comes as a rack server, with the possibility to add extra hard disks and a storage capacity of up to 144 TB.

This easy-to-install solution includes AXIS Camera Station video management software licenses for mid-sized installations, so you have everything you need to help ensure every customer installation is trouble-free.

From manufacturing facilities to schools and retail, AXIS Camera Station S1148 Recorder meets the requirements of a wide variety of businesses and industries. It’s ideal whenever reliable and secure surveillance is required.

Out-of-the-box, ready-to-use
AXIS Camera Station S1148 Recorder comes with AXIS Camera Station video management software licenses and configured software, so out-of-the-box you get seamless and reliable integration to all your Axis network cameras. AXIS Camera Station also allows you to verify system performance at installation, so you can be sure your solution is effective and secure.

The integrated AXIS recorder toolbox features an intuitive wizard, making it easy to set up hostname, network settings, and date and time setting. It includes everything you need to keep your system updated and maintained, all from one centralized place. And, the latest software is available in just one click.

Greater flexibility to meet your needs
AXIS Camera Station S1148 Recorder comes with greater storage flexibility allowing you to fully customize your system storage. It include several industry-standard RAID levels (0/1/5/6/10) to configure your system based on your specific redundancy and performance requirements.

AXIS S1148 is available with either 24 TB, 64 TB or 144 TB storage, and allows you to add extra hard disks to both the 24 TB and 64 TB variants. This solution is also validated to support as many as 16 additional camera licenses, so you can easily expand your system as it grows.

Specifications

Performance
Video input channels	64 channels
Built-in processor	Yes
Operating system installed	Windows 10 IoT Enterprise
Storage
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RAID levels	0, 1, 5, 6, 10
VGA (D-Sub) output ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Features
Rack mounting	Yes
Certification	EN/IEC/UL 60950-1, FCC part 15 class A, VCCI class A, RCM AS/NZS CISPR 32 Class A, EN 55032, class A, ICES-003/NMB-003 Class A, KC KN32 Class A, KN-35, EN 55024, EN/IEC 61000-3-2, EN/IEC 61000-3-3, NOM, BSMI, EAC
Rack capacity	2U
Product colour	Black, Grey
Processor
Built-in processor	Yes
Power
Output current	3 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-40 - 65 °C
Weight & dimensions
Width	482 mm
Depth	681 mm
Height	87 mm
Packaging content
Cables included	AC
