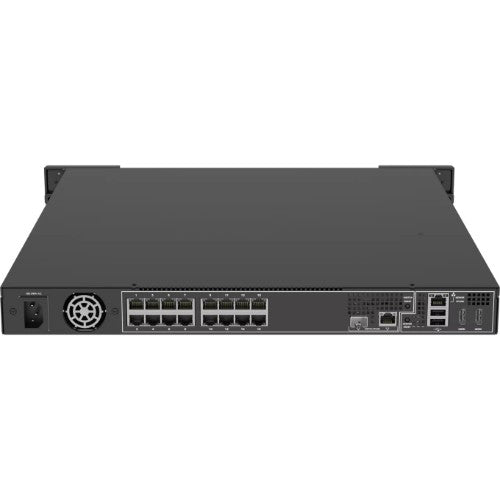

Axis S2216 Mk II 1U Black

16 Ch, 8K UHD, 16GB DDR5, 256 Mbit/s, 30 fps, 2x4TB, HDD, 16xPoE RJ-45, 100-240V, 50/60Hz, UK

Key Features

• All-in-one solution with integrated PoE switch
• 16 AXIS Camera Station Pro licenses included
• Room for storage expansion
• Advance Replacement Service and 5-year hardware warranty
• High cybersecurity features and standards

Description

AXIS Camera Station S2216 Mk II Rack Appliance

This 16-channel rack appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, a 16-port PoE switch, and 8 TB of storage. It comes with pre-loaded software and tools to minimize installation time.

Powerful and versatile

This rack appliance is ideal in larger installations such as manufacturing sites and commercial buildings. With 16 channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. And, it provides 10 AXIS Audio Manager Pro licenses when installing the software to the server. It comes with two empty bays for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, this powerful recorder supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.

Easy to install and maintain

It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to guide you setting up hostname, network settings in different environments, and date and time settings. It also includes a dashboard providing information on the built-in switch configuration, PoE management functions and troubleshooting tools. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.

Created with cybersecurity in mind

This reliable recording solution offers high-security features and standards. It offers an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.

Specifications

Performance
Video input channels	16 channels
Maximum resolution	7680 x 4320 pixels
Built-in processor	Yes
Internal memory	16000 MB
Internal memory type	DDR5
Throughput data rate	256 Mbit/s
Maximum frame rate	30 fps
Video recording modes	1080p
Hard drive
Number of HDDs supported	4
Maximum storage capacity	16 TB
RAID support	Yes
RAID levels	0, 1, 10
Number of HDDs installed	2
HDD capacity	4 TB
Storage
Number of HDDs supported	4
Maximum storage capacity	16 TB
RAID support	Yes
RAID levels	0, 1, 10
Number of HDDs installed	2
HDD capacity	4 TB
Solid state drive
Number of SSDs installed	1
SSD capacity	256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	16
Power over Ethernet (PoE)	Yes
RAID levels	0, 1, 10
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Power over Ethernet (PoE) ports quantity	16
HDMI ports quantity	2
Fiber ports quantity	1
Storage relative humidity (H-H)	10 - 90%
Features
Rack mounting	Yes
Certification	FIPS 140–2 Level 2, UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM
Rack capacity	1U
Product colour	Black
Processor
Built-in processor	Yes
Power
Power consumption (typical)	110 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (max)	130 W
Total Power over Ethernet (PoE) budget	520 W
System requirements
Windows operating systems supported	Windows 11
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	-40 - 65%
Storage temperature (T-T)	10 - 90 °C
Storage relative humidity (H-H)	10 - 90%
Technical details
Compliance certificates	Trade Agreements Act (TAA)
Weight & dimensions
Width	483 mm
Depth	440 mm
Height	45 mm
Weight	11 kg
Packaging content
Cables included	AC
