Axis | SKU:
02740-002

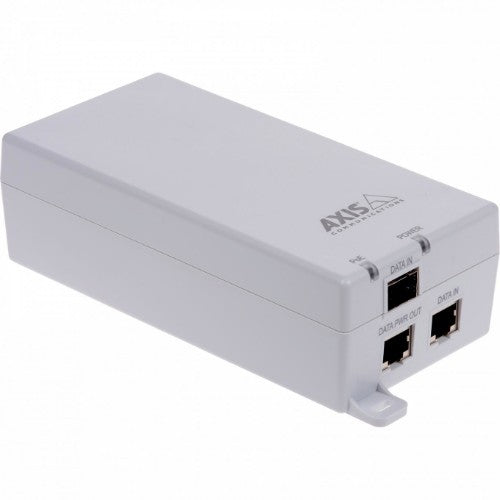

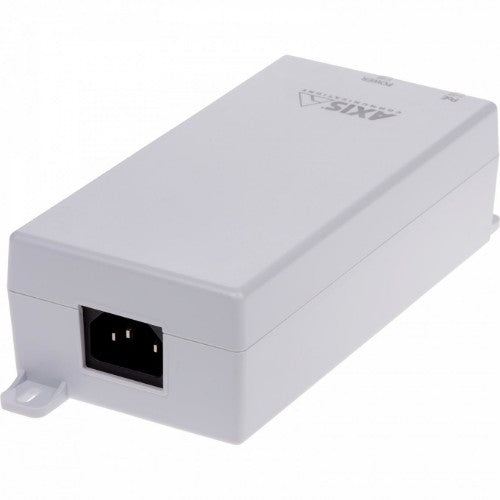

Axis T8154 Midspan
€220.18
Unit price
/
Unavailable
Shipping calculated at checkout.
Axis T8154 Midspan is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
60W PoE, 10/100/1000 Mbps, 100-240V
AXIS T8154 60 W SFP Midspan is a compact, plug-and-play media converter with PoE. With its integrated power supply, it minimizes the amount of cabling and facilitates installation. AXIS T8154 offers data input through SFP or RJ45, and delivers High PoE 60 W. It works with all Axis network products supporting Power over Ethernet.
Key Features
- SFP slot for fiber
- Integrated midspan
- High PoE 60 W
- Support for all Axis network products
Description
AXIS T8154 60 W SFP MidspanAXIS T8154 60 W SFP Midspan is a compact, plug-and-play media converter with PoE. With its integrated power supply, it minimizes the amount of cabling and facilitates installation. AXIS T8154 offers data input through SFP or RJ45, and delivers High PoE 60 W. It works with all Axis network products supporting Power over Ethernet.
Specifications
| Features | |
|---|---|
| Brand compatibility | Axis |
| Compatibility | M1055-L, M1075-L, M1135-E Mk II, M1135 Mk II, M1137 Mk II, M1137-E Mk II, P1375-E, P1375, P1377, P1377-LE, P1378, Q1615 Mk III, Q1615-LE Mk III, Q1656-B, Q1656, Q1656-BE, Q1656-BLE, Q1656-LE, Q1659, M2035-LE, M2036-LE, P1465-LE, P1455-LE, P1465-LE-3, P1467-LE, Q1700-LE, P1468-LE, Q1715, Q1786-LE, M3057-PLVE Mk II, M3077-PLVE, M3086-V, M3085-V, M3088-V, M3115-LVE, M3215-LVE, M3116-LVE, M3216-LVE, M3905-R, M4215-V, M4215-LV, M4216-LV, M4216-V, M4218-V, M4218-LV, M4308-PLE, P3255-LVE, P3265-LV, P3265-LVE-3, P1378-LE, P3265-LVE, P3265-V, P3267-LVE, P3267-LV, P3268-LV, P3268-LVE, P3727-PLE, P3719-PLE, P3807-PVE, P3904-R Mk II, P3818-PVE, P3827-PVE, P3905-R Mk II, P3925-LRE, P3935-LR, P3925-R, P4705-PLVE, P4707-PLVE, Q3536-LVE, Q3538-LVE, Q3538-SLVE, Q3628-VE, Q3626-VE, Q3819-PVE, Q9216-SLV, P9106-V |
| Type | Midspan |
| Product colour | White |
| Certification | IEC/EN/UL 60950-1, EN 62368-1, KC, CCC, CB, S-Mark, GS Mark per EN 60950-1, EN 55032 Class A, EN 61000 3-2, EN 61000 3-3, EN 55035, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, KCC KN32 Class A, KN35, EN 61000–6-1, EN 61000–6–2, EN 50121–4, IEC 62236-4 |
| LED indicators | Yes |
| Networking standards | IEEE 802.3bt |
| Ports & interfaces | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power | |
| Output voltage | 55 V |
| Input voltage | 100-240 V |
| Rated power | 60 W |
| Input frequency | 50/60 Hz |
| Power source type | AC |
| Technical details | |
| Compatibility | M1055-L, M1075-L, M1135-E Mk II, M1135 Mk II, M1137 Mk II, M1137-E Mk II, P1375-E, P1375, P1377, P1377-LE, P1378, Q1615 Mk III, Q1615-LE Mk III, Q1656-B, Q1656, Q1656-BE, Q1656-BLE, Q1656-LE, Q1659, M2035-LE, M2036-LE, P1465-LE, P1455-LE, P1465-LE-3, P1467-LE, Q1700-LE, P1468-LE, Q1715, Q1786-LE, M3057-PLVE Mk II, M3077-PLVE, M3086-V, M3085-V, M3088-V, M3115-LVE, M3215-LVE, M3116-LVE, M3216-LVE, M3905-R, M4215-V, M4215-LV, M4216-LV, M4216-V, M4218-V, M4218-LV, M4308-PLE, P3255-LVE, P3265-LV, P3265-LVE-3, P1378-LE, P3265-LVE, P3265-V, P3267-LVE, P3267-LV, P3268-LV, P3268-LVE, P3727-PLE, P3719-PLE, P3807-PVE, P3904-R Mk II, P3818-PVE, P3827-PVE, P3905-R Mk II, P3925-LRE, P3935-LR, P3925-R, P4705-PLVE, P4707-PLVE, Q3536-LVE, Q3538-LVE, Q3538-SLVE, Q3628-VE, Q3626-VE, Q3819-PVE, Q9216-SLV, P9106-V |
| Type | Midspan |
| Doesn't contain | PVC |
| Weight & dimensions | |
| Width | 80 mm |
| Weight | 517 g |
| Height | 50 mm |
| Depth | 184 mm |
| Colour | |
| Product colour | White |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -50 - 50 °C |
| Certificates | |
| Certification | IEC/EN/UL 60950-1, EN 62368-1, KC, CCC, CB, S-Mark, GS Mark per EN 60950-1, EN 55032 Class A, EN 61000 3-2, EN 61000 3-3, EN 55035, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, KCC KN32 Class A, KN35, EN 61000–6-1, EN 61000–6–2, EN 50121–4, IEC 62236-4 |
