Belkin F1DN202MOD-HH-4 KVM switch Black

2-Port Dual Head HDMI Modular Secure KVM Switch PP4.0 W/ Remote

Key Features

• HDMI video support for up to 3840x2160 @30hz refresh
• Modular form factor for maximizing desk space

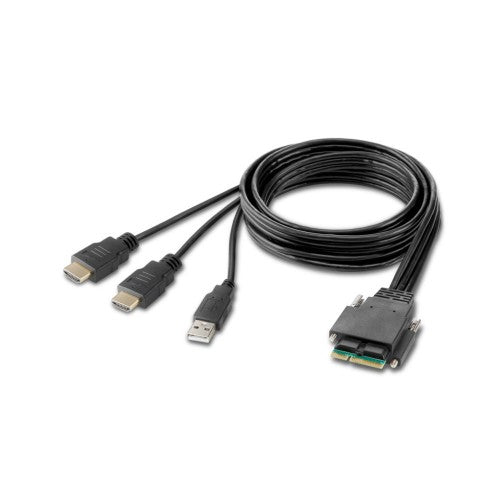

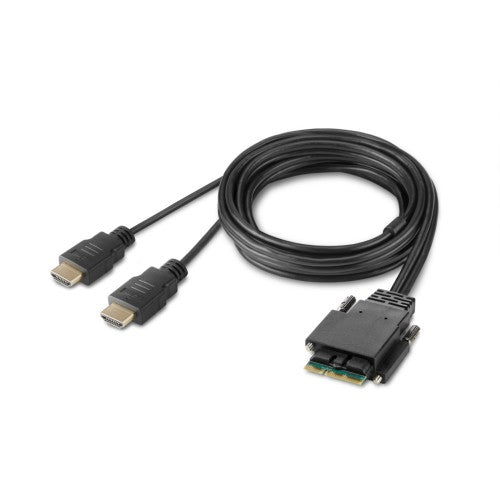

• Supports unique integrated cables for easy deployment (optional)
• Common Criteria Validated to NIAP Protection Profile PSD 4.0
• Supports up to two host computers
• Supports up to two displays for the user
• Supports a unique remote-control unit
• Dedicated processors with emulators for every port: Isolated port paths for video, audio, and peripherals prevent data leaks between computers
• Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
• Display security: Protected display interface prevents data leakage via the monitor
• Digital audio via video connections
• Peripheral management: USB device detection prevents unauthorized peripheral usage
• Anti-tampering and secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
• Customizable port coloring and naming on the remote control: Facilitates port identification and reduces user switching errors
• Fast switching: No keyboard or mouse delays when switching ports, minimal video delay
• Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport

Description

Belkin Secure Modular KVM Switch Series

The Belkin Secure Modular KVM and KM Switch Series pack the latest in Common Criteria and NIAP Protection Profile version 4.0 required isolation for peripheral switching devices in the smallest form factor available. An included remote control and innovative mount options allow administrators to craft operator stations to meet security requirements while decluttering the desk. A suite of purpose-built cables provides universal video support, allowing any computer to be interfaced with any monitor on any channel of the KVM while accommodating most generations of video standards. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. These US-Manufactured and TAA-compliant secure KVM and KM series are ideal for use in IT environments that demand rigorous cybersecurity provisions—including government, military, and healthcare applications.

The Belkin Difference

- Small footprint for 2 port, dual monitor HDMI KVM
- Futureproof design supports current and upcoming video standards up to 4k @ 30Hz with replaceable TAA-compliant cables
- Included remote control supports full KVM control while decluttering the desk
- Optional mounting hardware supports VESA mounting and under desk mounting
- Certified for NIAP Protection Profile 4.0 to meet the highest security standards
- US-based free technical support

Specifications

Ports & interfaces
USB connector type	USB Type-A
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
DC-in jack	Yes
Cable length	0.9 m
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Number of users	1 user(s)
Maximum cable length	1.8 m
Technical details
Product colour	Black
Rack mounting	No
Number of users	1 user(s)
LED indicators	Yes
Design
Wired remote switch	Yes
Maximum cable length	1.8 m
Product colour	Black
Cable length	0.9 m
Rack mounting	No
LED indicators	Yes
Certification	FCC Class A UL CE RoHS ICES RCM
Housing material	Aluminium
Display
Built-in display	No
Power
Output current	2.5 A
Output voltage	12 V
Power source	AC
External power adapter	Yes
Input voltage	100 - 240 V
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Packaging content
Cables included	HDMI
Quick installation guide	Yes
AC adapter included	Yes
Certificates
Certification	FCC Class A UL CE RoHS ICES RCM
Logistics data
Harmonized System (HS) code	85176200
