Broadcom | SKU:
05-50107-00
Sold out
30% off

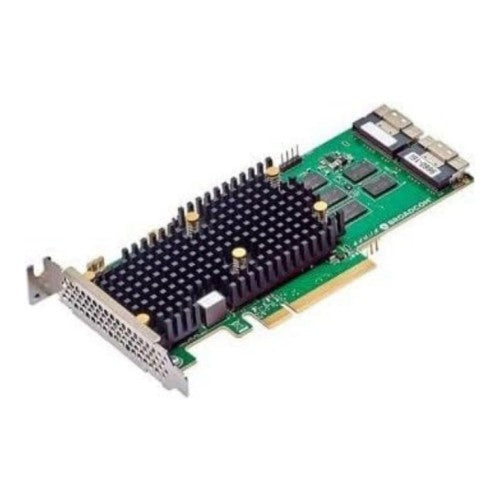

Broadcom 9660-16i interface cards/adapter Internal SAS, SATA, SFF-8654
€1,717.86
€2,465.08
Unit price
/
Unavailable
Shipping calculated at checkout.
Broadcom 9660-16i interface cards/adapter Internal SAS, SATA, SFF-8654 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Active, 4GB, 2x8 SFF-8654, SAS/SATA: 240, NVMe: 32, 20W, FH (attached), LP bracket
The MegaRAID 9660-16i adapter, based on the SAS4116 RAID-on-Chip (RoC), is the highest performing x8 PCIe Gen 4.0 storage adapter available to meet the ever-increasing demands of the data center. The low power MegaRAID 9660-16i allows users to seamlessly transition their existing storage infrastructure to get breakthrough SSD performance with minimal airflow and cooling requirements.
Key Features
- Low profile, half-length x8 PCIe Gen 4.0 adapter
- Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
- SFF-8654 (SlimSAS) x8 connectors
- Form-factor friendly cable exit
- Hardware Secure Boot and SPDM Attestation support
- Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
- SFF-TA-1005 Universa Bay Management (UBM) Ready
- Add more protection and peace of mind with CacheVault flash cache protection
Description
The MegaRAID 9600 series is the third generation of Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters. Designed to deliver the best possible performance for NVMe SSD-based storage systems, the 9600 family delivers 2x the bandwidth, over 4x the IOPs, 25x reduction in write latency and 60x increase in performance during rebuilds over the previous generation.The MegaRAID 9660-16i adapter, based on the SAS4116 RAID-on-Chip (RoC), is the highest performing x8 PCIe Gen 4.0 storage adapter available to meet the ever-increasing demands of the data center. The low power MegaRAID 9660-16i allows users to seamlessly transition their existing storage infrastructure to get breakthrough SSD performance with minimal airflow and cooling requirements.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Internal mini-SAS ports | 2 |
| Output interface | SAS, SATA, SFF-8654 |
| Host interface | PCIe |
| NVMe | Yes |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 4.0 |
| Technical details | |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Quantity per pack | 1 pc(s) |
| Sustainability compliance | Yes |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS, WEEE |
| Performance | |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Product colour | Black, Green, Silver |
| NVMe | Yes |
| S.M.A.R.T. support | Yes |
| Certificates | |
| Certification | Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); |
| Colour | |
| Product colour | Black, Green, Silver |
| Design | |
| Mean time between failures (MTBF) | 3000000 h |
| Internal | Yes |
| Product colour | Black, Green, Silver |
| Certification | Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); |
| Features | |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| S.M.A.R.T. support | Yes |
| NVMe | Yes |
| Power | |
| Power consumption (typical) | 20 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | SUSE Linux Enterprise Server |
| Other operating systems supported | VMware vSphere ESXi |
| Weight & dimensions | |
| Width | 155.5 mm |
| Depth | 68.8 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
