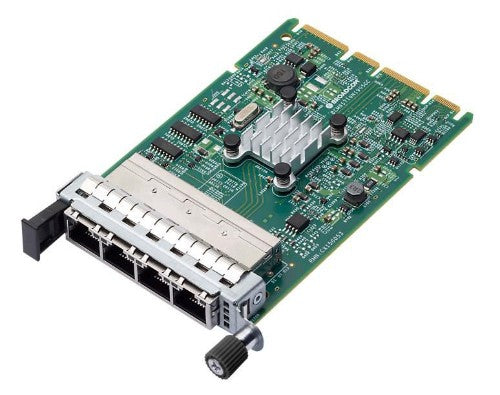

Broadcom N41T interface cards/adapter Internal RJ-45
€200.89
€261.14
Unit price
/
Unavailable
Shipping calculated at checkout.
Broadcom N41T interface cards/adapter Internal RJ-45 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Quad-port Gigabit Ethernet x4 PCI Express OCP 3.0 Small-Form-Factor Card, Pull Tab Faceplate
Key Features
- Standards-compliant quad-port 1GBASE-T PCIe networking adapter
- Energy Efficient Ethernet compliant with IEEE Std 802.3az-2010
- IEEE 802.3ap Clause 73 auto-negotiation
- Quad 10/100/1000BASE-T full-duplex/half-duplex MACs
- Virtualization support with VMware NetQueue and Microsoft VMQ
- Wake-on-LAN support
- Energy Efficient Ethernet (EEE)
Description
Designed for today's enterprise and data center environments, Broadcom's NetXtreme® 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports. The N41T quad-port 1Gb OCP 3.0 adapter is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The N41GBT OCP 3.0 adapter includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support the VMWare® NetQueue and Microsoft® VMQ technologies. The N41T OCP 3.0 adapter includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | RJ-45 |
| Host interface | PCIe |
| Expansion card standard | PCIe 2.1 |
| Host interface gender | Male |
| Technical details | |
| Data transfer rate (max) | 5 Gbit/s |
| Performance | |
| Data transfer rate (max) | 5 Gbit/s |
| Product colour | Green |
| Certificates | |
| Certification | RoHS |
| Colour | |
| Product colour | Green |
| Design | |
| Internal | Yes |
| Product colour | Green |
| Certification | RoHS |
| Cooling type | Passive |
| LED indicators | Activity, Link |
| Features | |
| Data transfer rate (max) | 5 Gbit/s |
| Packaging data | |
| Package weight | 80 g |
| Weight & dimensions | |
| Package weight | 80 g |
