Broadcom | SKU:
BCM957414A4140C
25% off

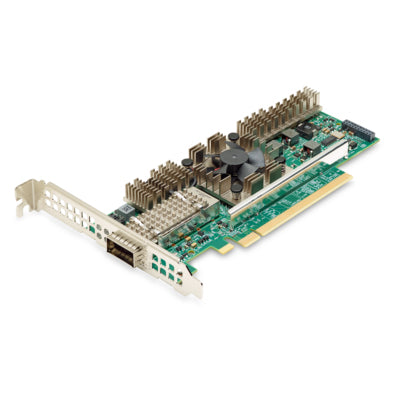

Broadcom P150P Internal Fiber 50000 Mbit/s
€414.90
€552.58
Unit price
/
Unavailable
Shipping calculated at checkout.
Broadcom P150P Internal Fiber 50000 Mbit/s is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
NetXtreme® E-Series Single-Port 50GbE PCIe Ethernet NIC, x8 PCI Express v3.0, QSFP28
The P150P 1x50G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.
Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.
With its market-leading hardware acceleration technologies, the NetXtreme-E Series P150P 1x50G PCIe NIC addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.
Description
Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series P150P 1x50G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.The P150P 1x50G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.
Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.
With its market-leading hardware acceleration technologies, the NetXtreme-E Series P150P 1x50G PCIe NIC addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Fiber ports quantity | 1 |
| Fiber optic connector | QSFP28 |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 50000 Mbit/s |
| Technical details | |
| Product colour | Green, Grey |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Network | |
| Ethernet LAN | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 50000,25000,40000 Mbit/s |
| Maximum data transfer rate | 50000 Mbit/s |
| Design | |
| Product colour | Green, Grey |
| Certification | EN 62368-1:2014 IEC 62368-1 (ed. 2) UL 1977 UL 796 UL 94 EN 55032:2012/AC:2013 Class BEN 55024:2010EN 61000-3-2:2014 EN 61000-3-3:2013 CFR47 Part 15 Subpart B Class B ICES-003 Class B AS/NZS CISPR 22:2009 +A1:2010 CNS 13438 (2006) Class B CNS 15663 KN32 Class B KN35 VCCI V-3 (2015-04) EN 55024:2010(EN 61000-4-2) FCC |
| Internal | Yes |
| LED indicators | Yes |
| Component for | PC |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | EN 62368-1:2014 IEC 62368-1 (ed. 2) UL 1977 UL 796 UL 94 EN 55032:2012/AC:2013 Class BEN 55024:2010EN 61000-3-2:2014 EN 61000-3-3:2013 CFR47 Part 15 Subpart B Class B ICES-003 Class B AS/NZS CISPR 22:2009 +A1:2010 CNS 13438 (2006) Class B CNS 15663 KN32 Class B KN35 VCCI V-3 (2015-04) EN 55024:2010(EN 61000-4-2) FCC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Harmonized System (HS) code | 85176990 |
