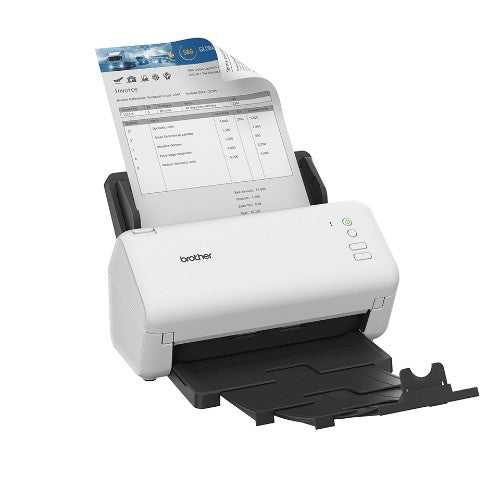

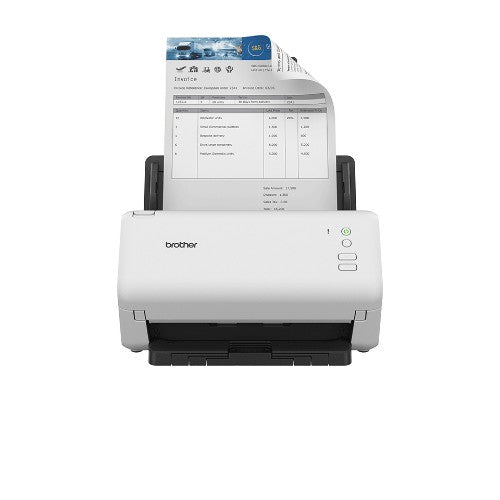

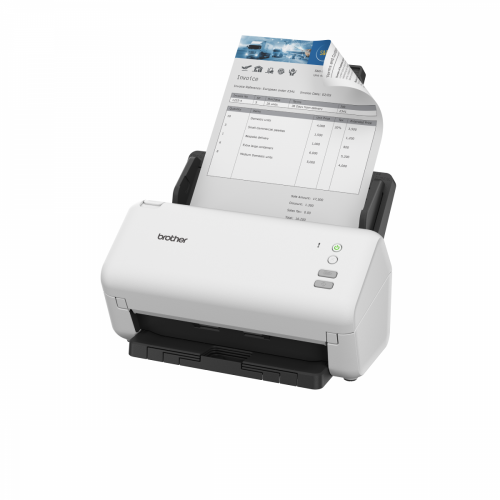

Brother ADS-4100 Desktop document scanner

With simplicity built in. Robust, easy-to-use, every day scanner. Great for digitsing a range of media at home or in the office.

Simple and intuitive. This highly versatile scanner is ideal for businesses that need to digitise a wide range of media, from paper to plastic cards, whether at home or in the office.

Fast and reliable

With high-quality and robust roller mechanisms, the ADS-4100 has a large 60 sheet ADF capacity and can scan up to 35 pages per minute.

Simple and intuitive

Design simplicity means it's easy to set up and easy to use.

Advanced connectivity

With USB3.0 and USB host, you can securely scan documents without the need for a PC.

Advanced image capture and processing

Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.

Brother ScanEssentials Lite

Our ScanEssentials Lite software enables you to scan documents easily, create simple workflows and save them securely to folders on your network, with minimum effort.

Industry recognised software

Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.,

Scanning
Output greyscale depth	8 bit
Maximum scan size	215.9 x 355.6 mm
Optical scanning resolution	600 x 600 DPI
Enhanced scan resolution	1200 x 1200 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
Greyscale levels	256
ADF scan speed (b/w, A4)	35 ppm
ADF scan speed (colour, A4)	35 ppm
Duplex ADF scan speed (b/w, A4)	70 ipm
Duplex ADF scan speed (colour, A4)	70 ipm
Sensor type	CIS
Light source	LED
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	5250 pages
Scan to	Image, PC, USB
Design
Built-in display	No
Scanner type	ADF scanner
Product colour	Black, White
Control type	Buttons
Performance
Sensor type	CIS
Light source	LED
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	5250 pages
Scan to	Image, PC, USB
Scan drivers	ICA, SANE, TWAIN, WIA
Scanning noise level	59 dB
Maximum duty cycle	105000 pages per month
Input capacity
Auto document feeder (ADF) input capacity	60 sheets
Paper handling
Maximum scan width	21.6 cm
Maximum scan length	5 m
Maximum ISO A-series paper size	A4
Media thickness (min)	0.08 mm
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Auto Document Feeder (ADF) media weight	40 - 200 g/m²
Long-paper mode	Yes
Card thickness (max)	1.1 mm
Paper tray media weight	40 - 200 g/m²
Ports & interfaces
USB port	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Scan drivers	ICA, SANE, TWAIN, WIA
Sound emission
Scanning noise level	59 dB
Power
Power consumption (typical)	23 W
Power consumption (standby)	5.4 W
Power consumption (off)	0.1 W
Power supply type	AC
Power consumption (sleep)	1.4 W
Output voltage	24 V
Output current	1.9 A
AC input frequency	50 - 60 Hz
Technical details
Maximum scan width	21.6 cm
Media thickness (min)	0.08 mm
Scanner type	ADF scanner
Maximum duty cycle	105000 pages per month
Product colour	Black, White
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070
Packaging data
Package depth	243 mm
Package weight	3.31 kg
Package width	391 mm
Package height	320 mm
Quantity per pack	1 pc(s)
Security
Cable lock slot	Yes
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	GS Mark, WHQL
Weight & dimensions
Package depth	243 mm
Package weight	3.31 kg
Width	299.5 mm
Depth	215.9 mm
Height	190.5 mm
Weight	2.6 kg
Package width	391 mm
Package height	320 mm
Packaging content
Cables included	AC, USB
Other features
Cable lock slot	Yes
Scanner type	ADF scanner
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84716070
