Cisco | SKU:
GLC-LX-SM-RGD=
23% off

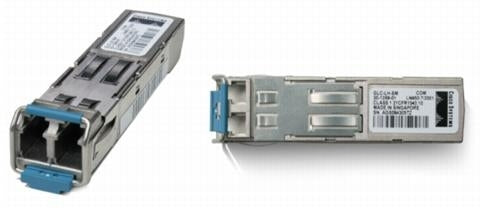

Cisco 1000BASE-LX/LH network transceiver module 1000 Mbit/s 1310 nm
€795.67
€1,034.44
Unit price
/
Unavailable
Shipping calculated at checkout.
Cisco 1000BASE-LX/LH network transceiver module 1000 Mbit/s 1310 nm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
1000BASE-LX/LH Long Wavelength; Rugged
Description
The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figure 1). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis. 1000BASE-LX/LH SFP for Both Multimode and Single-Mode Fibers The 100BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers.Specifications
| Network | |
|---|---|
| Fiber optic connector | LC, PC |
| Cabling technology | 100BASE-LX/LH |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Dimensions (WxDxH) | 13.4 x 56.5 x 8.5 mm |
| Cabling technology | 100BASE-LX/LH |
| Performance | |
| Fiber optic connector | LC, PC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Cabling technology | 100BASE-LX/LH |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance (Single-mode) | 10000 m |
| Maximum transfer distance (Multi-mode) | 550 m |
| Harmonized System (HS) code | 85369010 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Weight | 75 g |
| Other features | |
| Transmit power range | -3 - -9.5 dBmW |
| Dimensions (WxDxH) | 13.4 x 56.5 x 8.5 mm |
