Cisco | SKU:
SFP-10G-SR-S=
53% off

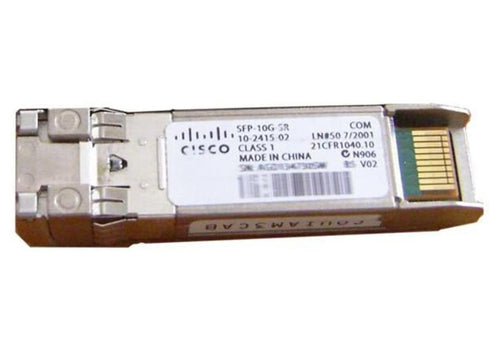

Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)
€296.23
€634.74
Unit price
/
Unavailable
Shipping calculated at checkout.
Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)
Key Features
- LINK LENGTH: Supports link lengths of 26 m on standard FDDI-grade multimode fiber; up to 300 m link lengths possible using OM3 and 400 m using OM4 (this model does not support Fiber Channel over Ethernet [FCoE])
- COMPACT: Industry-smallest 10G form factor for greatest density per chassis
- HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
- VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
- PEACE OF MIND: 5-year standard replacement warranty
Description
The Cisco 10GBASE-SR-S SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise server room and service provider transport applications. This hot-swappable input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.Specifications
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC, PC |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Cabling technology | 10GBASE-SR |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Technical details | |
| Package width | 143 mm |
| Package height | 44.5 mm |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Wavelength | 850 nm |
| Duplex system | Full |
| Cabling technology | 10GBASE-SR |
| Performance | |
| Country of origin | China |
| Hot-Plug support | Yes |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC, PC |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Wavelength | 850 nm |
| Duplex system | Full |
| Cabling technology | 10GBASE-SR |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Country of origin | China |
| Hot-Plug support | Yes |
| Certification | MSA |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
| Package depth | 158.8 mm |
| Package width | 143 mm |
| Package height | 44.5 mm |
| Package weight | 90.7 g |
| Packaging data | |
| Package depth | 158.8 mm |
| Number of products included | 1 pc(s) |
| Package width | 143 mm |
| Package height | 44.5 mm |
| Package weight | 90.7 g |
| Certificates | |
| Certification | MSA |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
