Cisco | SKU:
AIR-ANT2535SDW-RS=
17% off

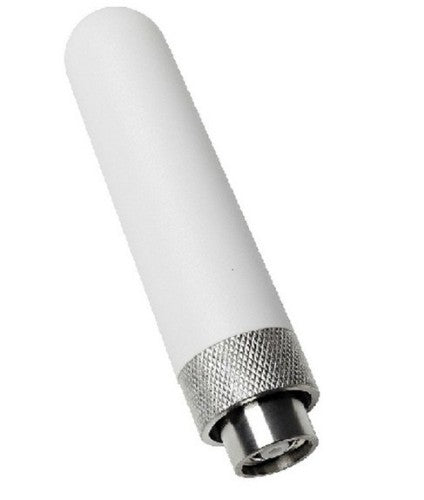

Cisco Aironet network antenna Omni-directional antenna RP-TNC 5 dBi
€63.42
€76.34
Unit price
/
Unavailable
Shipping calculated at checkout.
Cisco Aironet network antenna Omni-directional antenna RP-TNC 5 dBi is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Aironet Short Dual-Band Omni Antenna, 3/5 dBi
Description
This document describes the Cisco Aironet AIR-ANT2535SDW-R and AIR-ANT2535SDW-RS antennas and provides electrical specifications and mounting instructions. The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the Cisco Aironet 1600, 2600, 3600, 3700, and Cisco Catalyst 9120AXE series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area. The AIR-ANT2535SDW-RS antenna includes circuitry to enable self-identification of the antenna by the Cisco access points. The antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the wireless controller.Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Frequency band | 2.4/5 GHz |
| Vertical beam width (5 GHz) | 35° |
| Vertical beam width (2.4 GHz) | 35° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 35° |
| Horizontal beam width (2.4 GHz) | 35° |
| Antenna gain (5 GHz) | 5 dBi |
| Antenna gain (2.4 GHz) | 3 dBi |
| Features | |
| Connector gender | Male |
| Antenna gain level (max) | 5 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Vertical beam width (5 GHz) | 35° |
| Vertical beam width (2.4 GHz) | 35° |
| Purpose | Indoor |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 35° |
| Horizontal beam width (2.4 GHz) | 35° |
| Product colour | White |
| Antenna gain (5 GHz) | 5 dBi |
| Antenna gain (2.4 GHz) | 3 dBi |
| Antenna connector type | RP-TNC |
| Compatible products | AP1600, AP2600, AP3600, AP3700 |
| Technical details | |
| Antenna gain level (max) | 5 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Vertical beam width (5 GHz) | 35° |
| Vertical beam width (2.4 GHz) | 35° |
| Purpose | Indoor |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 35° |
| Horizontal beam width (2.4 GHz) | 35° |
| Antenna gain (5 GHz) | 5 dBi |
| Antenna gain (2.4 GHz) | 3 dBi |
| Antenna connector type | RP-TNC |
| Compatible products | AP1600, AP2600, AP3600, AP3700 |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
