Cisco | SKU:
CBS220-8T-E-2G-UK
Cisco Business CBS220-8T-E-2G Smart Switch | 8 Port GE | 2x1G Small Form-Factor Pluggable (SFP) | 3-Year Limited Hardware Warranty (CBS220-8T-E-2G-UK)
€106.50
Unit price
/
Unavailable
Shipping calculated at checkout.
Cisco Business CBS220-8T-E-2G Smart Switch | 8 Port GE | 2x1G Small Form-Factor Pluggable (SFP) | 3-Year Limited Hardware Warranty (CBS220-8T-E-2G-UK) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Business CBS220-8T-E-2G Smart Switch | 8 Port GE | 2x1G Small Form-Factor Pluggable (SFP) | 3-Year Limited Hardware Warranty (CBS220-8T-E-2G-UK)
Key Features
- SWITCH PORTS: 8-Port 10/100/1000 + 2 x 1G SFP

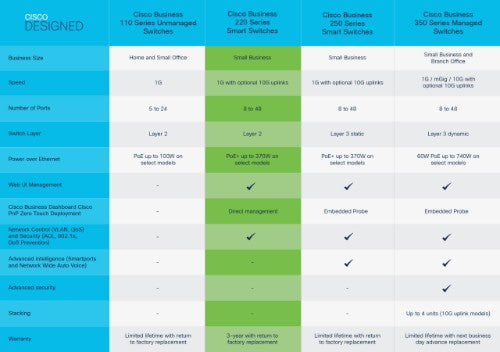

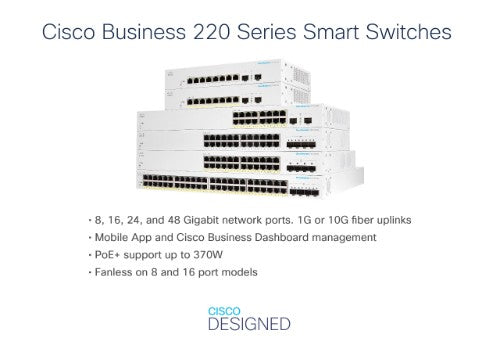

- FLEXIBLE: Extensive portfolio provides ultimate flexibility from 8 to 48 ports and Power over Ethernet + (PoE+) combinations

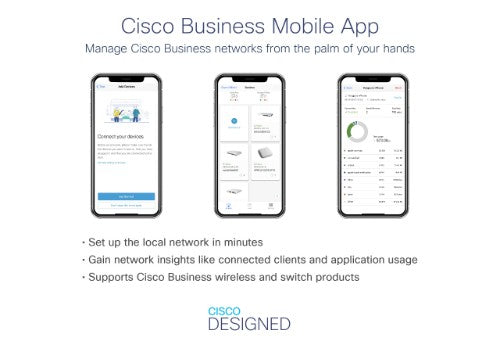

- SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
- SECURITY: Integrated with IEEE 802.1X to control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while Access Control Lists (ACLs) protect the network from unauthorized users
- INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
- ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in select models
- PEACE OF MIND: 3-year limited hardware warranty with return-to-factory replacement and one-year technical support
Description
The Cisco Business CBS220-8T-E-2G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Multicast MAC address table | 8192 entries |
| Number of VLANs | 256 |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8192 entries |
| Switching capacity | 20 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 14.88 Mpps |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast MAC address table | 8192 entries |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Design | |
| Reset button | Yes |
| Country of origin | China |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
| Rack mounting | Yes |
| Market segment | Business |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| Packaging content | Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide |
| Power | |
| Power plug type | Type C |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 20.13 BTU/h |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 279.4 mm |
| Height | 44.5 mm |
| Weight | 1.16 kg |
| Packaging data | |
| Package width | 292.1 mm |
| Package depth | 368.3 mm |
| Package height | 106.7 mm |
| Package weight | 2.39 kg |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Packaging content | Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Country of origin | China |
