Cisco Catalyst IE3300 Managed L2 Gigabit Ethernet (10/100/1000) Black

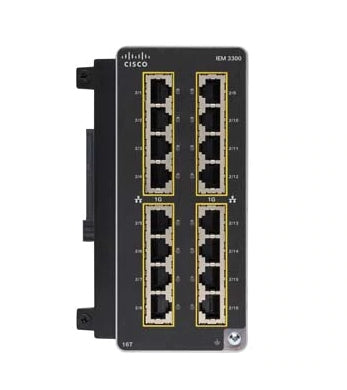

Catalyst IE3300 with 16 GE Copper ports, Expansion Module

Key Features

• Expansion Module
• 16 Copper ports

Description

Cisco Catalyst IE3300 Rugged Series features full Gigabit Ethernet with a modular, optimized design. Expandable up to 26 ports in a compact form factor, these rugged network switches are optimized for size, power and performance. They can deliver up to 24 ports of PoE/PoE+ (power budget of 360 W shared across 24 port), and bring Cisco intent-based networking to Industrial Ethernet applications.

Modular, versatile design
The Cisco Catalyst IE3300 Rugged Series offers seven modules with copper, fiber, and PoE options. The platform delivers the flexibility to adapt to your growing connectivity needs and help future-proof your investments.

High-density PoE+ managed switch
Reduce complexity with one cable for connectivity and power. The Cisco Catalyst IE3300 Rugged Series provides high-density industrial switching that power up to 24 ports of PoE/PoE+ (power budget of 360 W shared across 24 port), making them an excellent choice to power Wi-Fi access points, IP cameras, and sensors.

Fast speed, all Gigabit Ethernet switch
Accelerate digital transformation and upgrade your IoT infrastructure to Gigabit speeds. The Cisco Catalyst IE3300 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs.

Compact form factor for rugged switch use cases
Measuring 25 percent smaller than the IE3000, the Cisco Catalyst IE3300 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments..

Open, extensible platform with IOS XE
Cisco IOS XE is the next-generation network operating system, with open and standards-based APIs and built-in multilayer security and trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quicker.

Specifications

Management features
Multicast support	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Network
IGMP snooping	Yes
IGMP entries	1000
Networking standards	IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Spanning tree protocol	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Power
Power connector	DC-in jack
DC input voltage	9.6 - 60 V
Technical details
Product colour	Black
Mean time between failures (MTBF)	1594210 h
Rack mounting	No
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Power connector	DC-in jack
Data transmission
MAC address table	8000 entries
Number of queues	8
Static route	Yes
Security
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Web-based authentication
Security algorithms	802.1x RADIUS, SNMPv3, SSH
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
IGMP entries	1000
DHCP features	DHCP server, DHCP snooping
Multicast features
Multicast support	Yes
Memory
Memory type	DRAM
Internal memory	4000 MB
Flash memory	1500 MB
Design
DIN rail mounting	Yes
Product colour	Black
LED indicators	Yes
Rack mounting	No
Performance
Memory type	DRAM
Mean time between failures (MTBF)	1594210 h
Internal memory	4000 MB
Flash memory	1500 MB
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	86.4 mm
Depth	134.6 mm
Height	152.4 mm
Weight	1.22 kg
