connektgear | SKU:
90-0060
connektgear 24 Port Patch Panel (Cat5e) IDC Punch Down 19 inch
€19.69
Unit price
/
Unavailable
Shipping calculated at checkout.
connektgear 24 Port Patch Panel (Cat5e) IDC Punch Down 19 inch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.

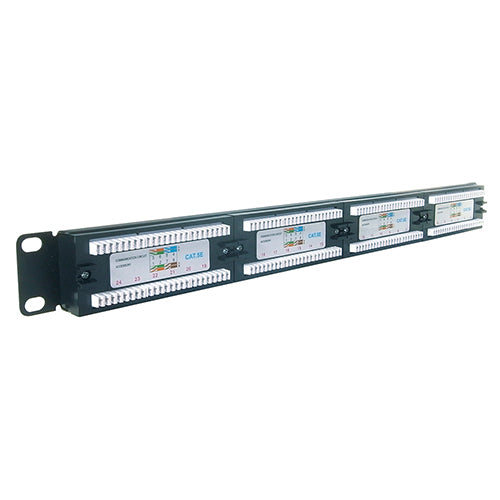

24 Port Patch Panel (Cat5e) IDC Punch Down 19 inch
Key Features
- CAT 5e TIA & ISO standard

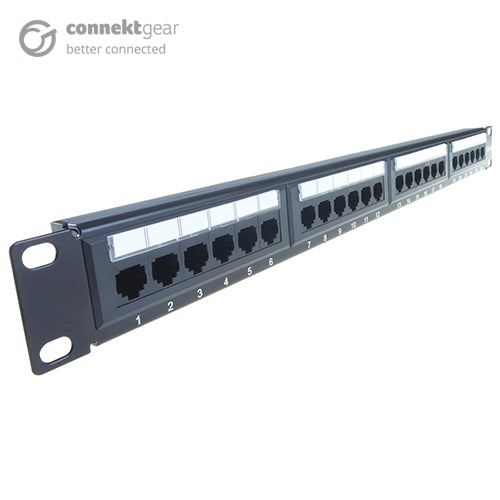

- Screen printed port numbering on the front of the panel
- Removable cards held in clear plastic holders on the front of the panel for personalised Identification

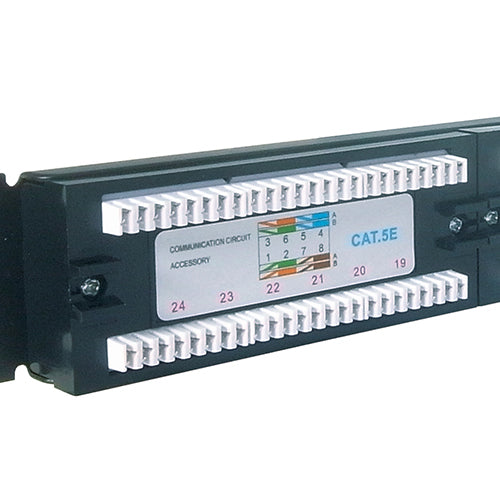

- Pre-printed port numbering labels on the back of the panel
- High quality pressed steel front panel construction
- Includes cages nuts and cable ties
Description
-Specifications
| Network | |
|---|---|
| Connector contacts plating | Gold |
| Ethernet interface type | Fast Ethernet |
| Maximum data transfer rate | 100 Mbit/s |
| Cable types supported | Cat5e |
| AWG wire size | 22/26 |
| Ports quantity | 24 |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Connector(s) | RJ-45 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | No |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Cable management | Yes |
| Material | ABS synthetics, Polybutylene terephthalate (PBT), Polycarbonate (PC), SPCC |
| Product colour | Black |
| Cable connection | RJ45 Male |
| Certification | REACH |
| Certificates | |
| Certification | REACH |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Width | 480 mm |
| Weight | 700 g |
| Height | 44 mm |
| Depth | 33 mm |
| Package weight | 82.5 g |
| Package width | 510 mm |
| Package length | 9.2 cm |
| Package height | 60 mm |
| Packaging content | |
| Number of cable ties | 4 |
| Cable tie(s) included | Yes |
| Package type | Box |
| Packaging data | |
| Package weight | 82.5 g |
| Package type | Box |
| Package depth | 92 mm |
| Package width | 510 mm |
| Package length | 9.2 cm |
| Package height | 60 mm |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Material | ABS synthetics, Polybutylene terephthalate (PBT), Polycarbonate (PC), SPCC |
| Product colour | Black |
| Certification | REACH |
| Cable connection | RJ45 Male |
| Technical details | |
| Mounting | Rack mounting |
| Package type | Box |
| Operating temperature (T-T) | 0 - 70 °C |
| Package width | 510 mm |
| Package length | 9.2 cm |
| Package height | 60 mm |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Material | ABS synthetics, Polybutylene terephthalate (PBT), Polycarbonate (PC), SPCC |
| Cable connection | RJ45 Male |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Country of origin | China |
