connektgear | SKU:
90-0030/LB

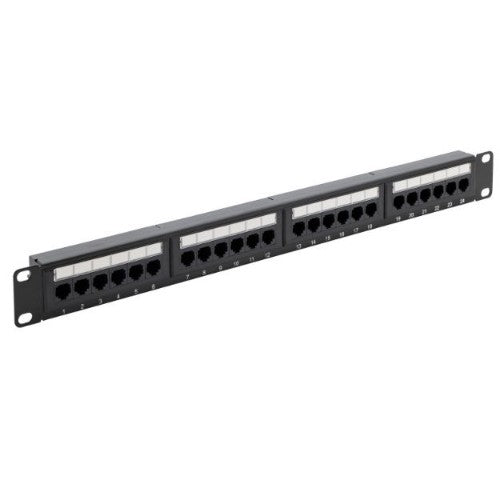

connektgear 24 Port Patch Panel (Cat6) IDC Punch Down 19 inch + Lacing Bar
€29.72
Unit price
/
Unavailable
Shipping calculated at checkout.
connektgear 24 Port Patch Panel (Cat6) IDC Punch Down 19 inch + Lacing Bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
24 Port Patch Panel (Cat6) IDC Punch Down 19 inch + Lacing Bar
Key Features
- Specification: CAT6
- Number of ports: 24
- Termination style: IDC punchdown
- IDC terminals: Feature phosphor bronze & nickel coating
- IDC terminals contact compatibility: 22 - 26AWG solid wires
- Port connection: RJ45 Male
- RJ45 socket minimum life: 750 insertions
- RJ45 socket: 50 Micron gold plated contact pins
- Cable management system: Cable tie
- Wiring specification: T568A & T568B
- Shielding: No
- Rack size: 19"
- Dimensions: 1U, 480 x 33 x 44mm (W x D x H)
- Operating temperature: 0ºC - 70ºC
- Storage temperature: -40ºC - 85ºC
- Colour: Black
Description

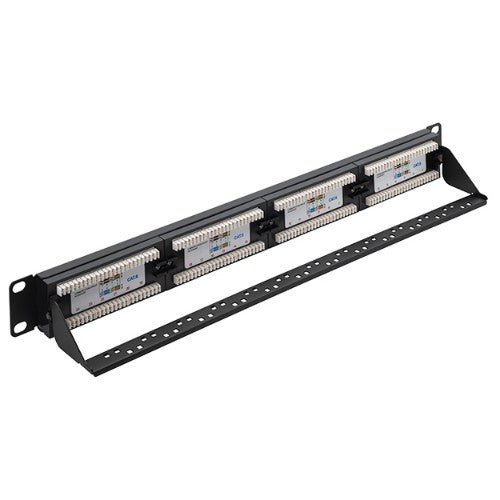

Our CAT6 patch panel is designed to manage and organise your network connections, featuring 24 ports on the front for easy access and the corresponding termination points on the back. It also features removable cards on the front of the panel for personalisation which allows you to connect cables from your PCs, printers and router without error. These are commonly used in data centres and telecommunications rooms to simplify network management. This also includes a lacing bar to avoid cable stress and help keep them tidy.Specifications
| Network | |
|---|---|
| Connector contacts plating | Gold |
| Ethernet interface type | Fast Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Cable types supported | Cat6 |
| AWG wire size | 22/26 |
| Ports quantity | 24 |
| Connector(s) | RJ-45 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | No |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Cable management | Yes |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Thermoplastic polyester (PBT) |
| Product colour | Black |
| Cable connection | RJ45 Male |
| Certification | REACH |
| Certificates | |
| Certification | REACH |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Width | 480 mm |
| Weight | 700 g |
| Height | 44 mm |
| Depth | 33 mm |
| Package weight | 82.5 g |
| Package width | 500 mm |
| Package height | 55 mm |
| Packaging content | |
| Number of cable ties | 4 |
| Cable tie(s) included | Yes |
| Package type | Box |
| Packaging data | |
| Package weight | 82.5 g |
| Package type | Box |
| Package depth | 98 mm |
| Package width | 500 mm |
| Package height | 55 mm |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Thermoplastic polyester (PBT) |
| Product colour | Black |
| Certification | REACH |
| Cable connection | RJ45 Male |
| Technical details | |
| Mounting | Rack mounting |
| Package type | Box |
| Operating temperature (T-T) | 0 - 70 °C |
| Package width | 500 mm |
| Package height | 55 mm |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Thermoplastic polyester (PBT) |
| Cable connection | RJ45 Male |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Country of origin | China |
