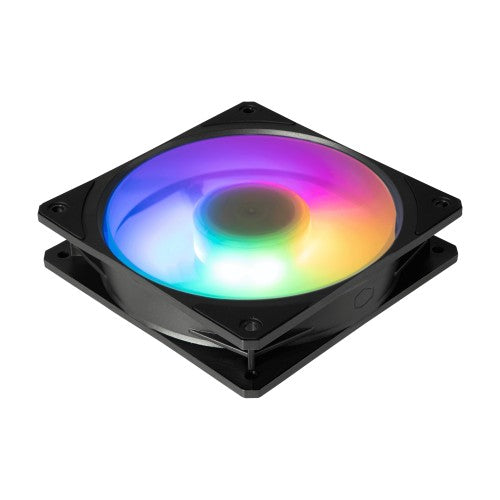

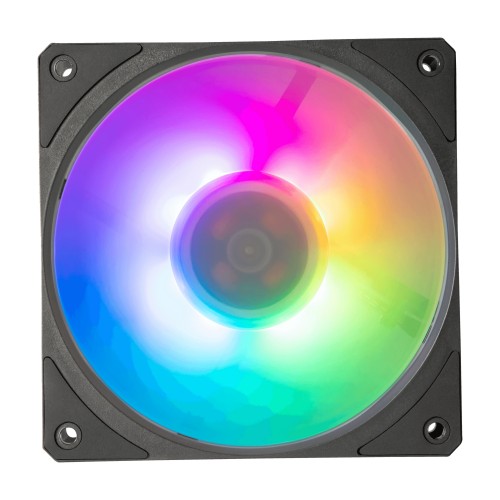

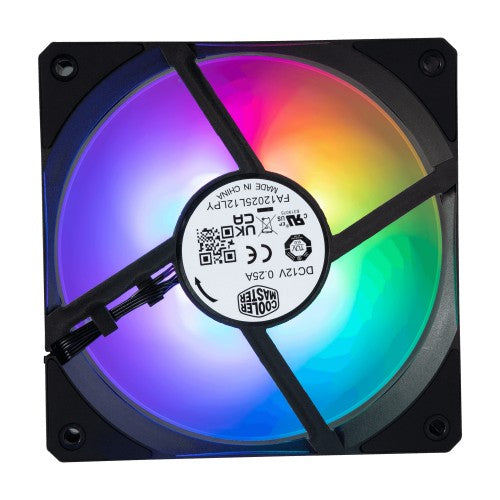

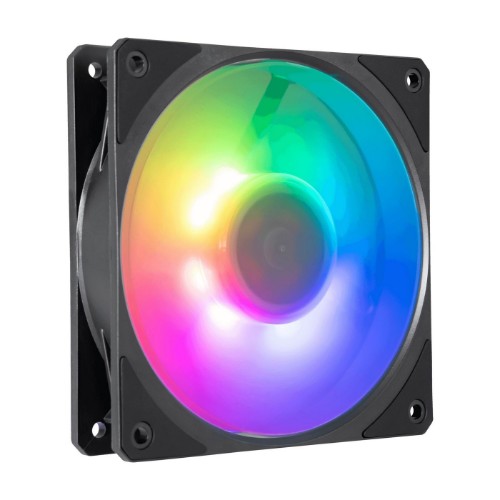

Cooler Master Mobius 120P ARGB Computer case Fan Black

120 mm, 0-2400 RPM, 75.2 CFM, 30 dBA, 3.63 mmH2O, 4-Pin, PWM, 179 g

Key Features

• Ring Blade Design (RBD)
• Pressure Air Acceleration
• Absolute Acoustics
• Luminescent Light Effects
• Addressable Gen 2 RGB

Description

More Balance, More Burst

Perfecting Engineering
Cooler Master’s Mobius 120P ARGB is our new series of performance fans. With our enhanced Ring Blade Design, the Mobius Series optimizes both performance and acoustics, catering to a dynamic range of applications from case, liquid or air, to overclocking and intense gaming.

Ring Blade Design (RBD)
Interconnecting fan blades designed for a reinforced and rigid structure, eliminating vibration for stable and fluid fan operation.

Loop Dynamic Bearing
New loop dynamic bearing design utilizes thick oil coating and lubrication to allow for stable performance

Oil Reflow
The oil flows back to the sealed bearing to create constant lubrication against friction and increases the life span of the fan.

Dust Proofing
The sealed and concave position of the bearing prevents air and dust exposure and ensures a smooth transfer of motion.

Anti-sway System
Magnetic ring prevents bearing shaft from tilting, stabilizing the fan to prevent fan blade obstruction under various orientations, as well as oil spray.

Pressure Air Acceleration
Angled inner frame rim with chamfered side vents boost airflow draw, maximizing force induced air pressure and diminishing dead air.

Absolute Acoustics
Sound output fine tuned to the optimal prominence ratio to achieve sub 6dB noise levels without performance sacrifice.

Acoustic Testing Anechoic Chamber for ISO 3745

FFT analyzer: AD-3524 O Microphone: B&K 2235
Sound Pressure: IS0-7779
Sound Power: ISO-7779
Sound Quality: 1S0-532B /ISO
Background noise: below 6dBA

Various Speeds, Various Functions
The Mobius Series offer various speeds for distinct usages. With the Mobius 120 operating up to 2050rpm, it is perfect for your case and chassis air intake. The Mobius 120P ARGB spins up to 2400rpm, designed to handle performance for air and liquid cooling.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	0 RPM
Rotational speed (max)	2400 RPM
Bearing type	Loop Dynamic Bearing (LDB)
Noise level (high speed)	30 dB
Type	Fan
Maximum airflow	75.2 cfm
Maximum air pressure	3.63 mmH2O
Fan's mean time to failure (MTTF)	200000 h
Design
Fan connector	4-pin
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
LED connector type	3-pin
Technical details
Noise level (high speed)	30 dB
Type	Fan
Maximum airflow	75.2 cfm
Maximum air pressure	3.63 mmH2O
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Safety current	0.35 Ah
Rated voltage	12 V
Rated current	0.18 A
Power consumption (typical)	2.16 W
LED voltage	5 V
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	130 mm
Package width	28 mm
Package height	178 mm
Fan weight	179 g
Package weight	266 g
Packaging data
Package depth	130 mm
Package width	28 mm
Package height	178 mm
Package weight	266 g
Indication
Illumination colour	Multi
Other features
Safety current	0.35 Ah
LED voltage	5 V
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	315 mm
Master (outer) case length	370 mm
Master (outer) case height	155 mm
