Cooler Master | SKU:
MPE-6501-ACABW-3BUK
Sold out

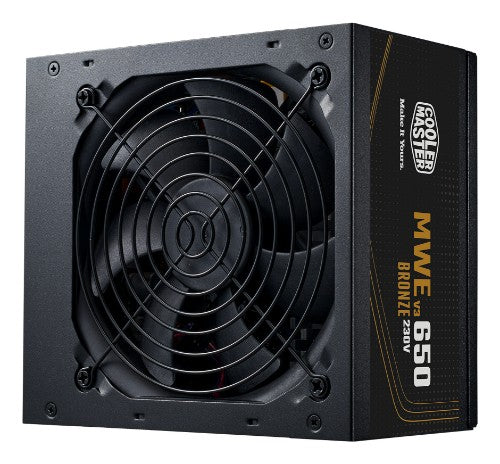

Cooler Master MWE Bronze 650 V3 230V power supply unit 650 W 24-pin ATX ATX Black
€58.93
Unit price
/
Unavailable
Shipping calculated at checkout.
Cooler Master MWE Bronze 650 V3 230V power supply unit 650 W 24-pin ATX ATX Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
650 W, ATX 12V V3.1, APFC, ATX 24 Pin, EPS 4+4 Pin, SATA, Peripheral 4 Pin, PCI-e 6+2 Pin, 200-240 V, 6 A, 50/60Hz, 120 mm, HDB, 140 x 150 x 86 mm, 1.65 kg, UK
ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
Certified Efficiency
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical loads.
High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.
PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
Key Features
- ATX 3.1 support
- High temperature resilience
- Quiet HDB fan
- 80 Plus Bronze certified efficiency
- Embossed cable
Description
Power EvolvedATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
Certified Efficiency
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical loads.
High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.
PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC/Server |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 100000 h |
| Certification | ErP 2014 Lot 3 |
| Bearing technology | HDB |
| Design | |
| 80 PLUS certification | 80 PLUS Bronze |
| Certification | ErP 2014 Lot 3 |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Fan location | Top |
| Cooling type | Active |
| Power | |
| Total power | 650 W |
| Power Good signal delay range | 100 - 150 ms |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 19 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 19 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 88% |
| Ports & interfaces | |
| Motherboard power cable length | 50 cm |
| SATA power cable length | 400,550,700 mm |
| Peripheral (Molex) power cable length | 550,700,400 mm |
| PCI Express power cable length | 62 cm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| EPS cable length | 67 cm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Master (outer) cases per pallet (air) | 32 pc(s) |
| Compliance certificates | BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| Certificates | |
| Certification | ErP 2014 Lot 3 |
| Compliance certificates | BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| 80 PLUS certification | 80 PLUS Bronze |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.65 kg |
| Packaging data | |
| Package depth | 245 mm |
| Package width | 190 mm |
| Package height | 110 mm |
| Package type | Box |
| Package weight | 2.05 kg |
| Logistics data | |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 570 mm |
| Master (outer) case height | 215 mm |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) cases per pallet (air) | 32 pc(s) |
| Other features | |
| EPS cable length | 67 cm |
