Cooler Master | SKU:
MPZ-B001-SFAP-BUK
Sold out

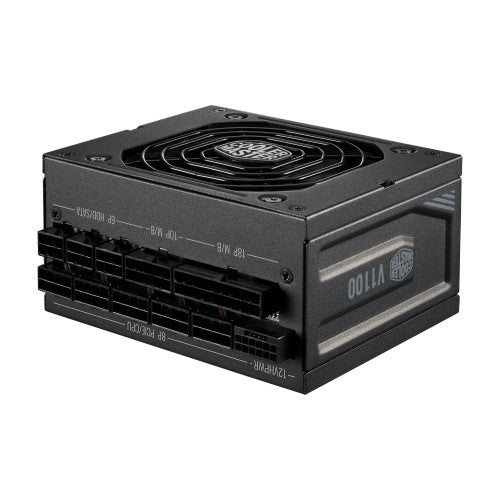

Cooler Master V SFX Platinum 1100 power supply unit 1100 W 24-pin ATX Black
€173.24
Unit price
/
Unavailable
Shipping calculated at checkout.
Cooler Master V SFX Platinum 1100 power supply unit 1100 W 24-pin ATX Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
1100W, ATX3.0, SFX 12V Ver. 3.42, 100-240V, 14-6.5A, 50-60Hz, 92mm, FDB, 100 - 150 ms, UK
Leading the SFX power supply industry, the V SFX Platinum delivers not only the most powerful SFX power supply but fully compatable with ATX3.0, both ITX and ATX cases, bringing a revolution to SFX power supply.
High Power Density
Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 30% more than V SFX Gold 850W power supply, in the small form factor.
Miniaturized But Solid

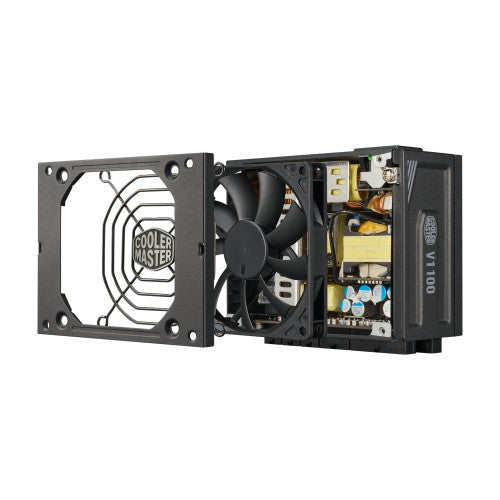

Crafted with flat copper wire on Choke of DC-DC, flat transformer piling and aluminum plate dissipation structure on full-bridge LLC, it can effectively achieve components miniaturization. Adopting with advanced manufacturing process, it simultaneously keeps miniaturized but solid.
Enhanced Dissipation
With the integration of transformer and rectifier, full-bridge LLC heat dissipation structure, and the EMI-inhibited amorphous metal materials, the V SFX Platinum provideds advanced performance and heat dissipation.
Full & Flexible Compatibility
Designed to fully support ATX3.0 and provide backward compatibility, supporting both RTX 40 and 30 series graphics cards, and alongside with included bracket to support both ITX and ATX cases, the V SFX Platinum offers a PSU with the most complete compatibility.
100% Japanese capacitors
Implementing large and high-quality Japanese capacitors to increase efficiency and reduce ripple noise.

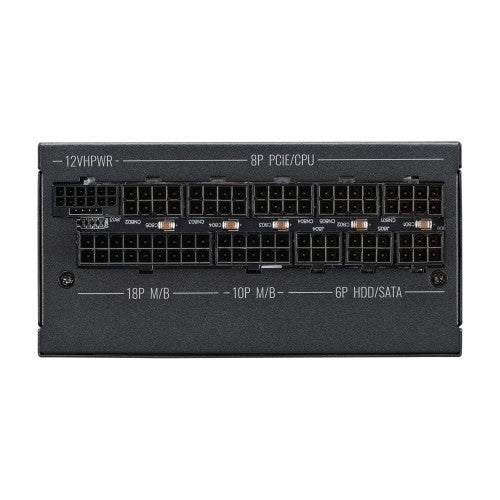

Fully Modular Cabling
Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
Key Features
- High Power Density
- Fully Support ATX3.0
- 100% Japanese Capacitors
- Full-bridge LLC and DC-DC Technology
- Fully Modular Cables
Description
A Revolution to SFXLeading the SFX power supply industry, the V SFX Platinum delivers not only the most powerful SFX power supply but fully compatable with ATX3.0, both ITX and ATX cases, bringing a revolution to SFX power supply.
High Power Density
Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 30% more than V SFX Gold 850W power supply, in the small form factor.
Miniaturized But Solid
Crafted with flat copper wire on Choke of DC-DC, flat transformer piling and aluminum plate dissipation structure on full-bridge LLC, it can effectively achieve components miniaturization. Adopting with advanced manufacturing process, it simultaneously keeps miniaturized but solid.
Enhanced Dissipation
With the integration of transformer and rectifier, full-bridge LLC heat dissipation structure, and the EMI-inhibited amorphous metal materials, the V SFX Platinum provideds advanced performance and heat dissipation.
Full & Flexible Compatibility
Designed to fully support ATX3.0 and provide backward compatibility, supporting both RTX 40 and 30 series graphics cards, and alongside with included bracket to support both ITX and ATX cases, the V SFX Platinum offers a PSU with the most complete compatibility.
100% Japanese capacitors
Implementing large and high-quality Japanese capacitors to increase efficiency and reduce ripple noise.
Fully Modular Cabling
Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Platinum |
| Certification | ErP 2014 Lot 3, TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA |
| Product colour | Black |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Cooling type | Active |
| Power | |
| Total power | 1100 W |
| Power Good signal delay range | 100 - 150 ms |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6.5 - 14 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1099.2 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 91.6 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 92% |
| Ports & interfaces | |
| Motherboard power cable length | 30 cm |
| SATA power cable length | 100,250,400,550,700 mm |
| Peripheral (Molex) power cable length | 100,220,340,460 mm |
| PCI Express power cable length | 40 cm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| EPS cable length | 45 cm |
| ATX power connector (12+4 pin) | Yes |
| Performance | |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC/Server |
| ATX version | 3.0 |
| Mean time between failures (MTBF) | 100000 h |
| Certification | ErP 2014 Lot 3, TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA |
| Bearing technology | FDB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Certificates | |
| Certification | ErP 2014 Lot 3, TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA |
| 80 PLUS certification | 80 PLUS Platinum |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
| Weight | 1.95 kg |
| Packaging data | |
| Package depth | 272 mm |
| Package width | 197 mm |
| Package height | 100 mm |
| Package weight | 2.27 kg |
| Logistics data | |
| Master (outer) cases per pallet | 32 pc(s) |
| Master (outer) case width | 290 mm |
| Master (outer) case length | 525 mm |
| Master (outer) case height | 235 mm |
| Products per master (outer) case | 5 pc(s) |
| Other features | |
| EPS cable length | 45 cm |
