Corsair | SKU:
CP-9020253-UK
Sold out
Corsair RM1000x SHIFT power supply unit 100 W 24-pin ATX ATX Black
€168.76
Unit price
/
Unavailable
Shipping calculated at checkout.
Corsair RM1000x SHIFT power supply unit 100 W 24-pin ATX ATX Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
1000w, 12A-6A, 100–240V, 47~63Hz, Black, 80 PLUS Gold Fully Modular ATX
NO MORE FUMBLING AROUND
SIDE MOUNTED CONNECTIONS

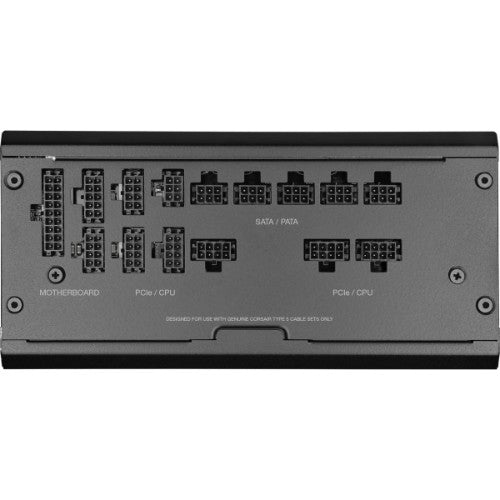

An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.
ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.
140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.
80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Description
A PSU THAT'S ON YOUR SIDENO MORE FUMBLING AROUND
SIDE MOUNTED CONNECTIONS
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.
ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.
140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.
80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Rear |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| Silent mode | Yes |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 14 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Fan location | Rear |
| Cooling type | Active |
| Power | |
| Total power | 100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 12A-6A |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 150 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 115,455 mm |
| CPU power cable length | 65 cm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 16 |
| Number of PATA power connectors | 8 |
| PCI Express power connectors (6+2 pin) | 7 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| Packaging content | |
| Cables included | CPU, PATA, SATA |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
| Weight | 1.9 kg |
| Packaging data | |
| Cables included | CPU, PATA, SATA |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
