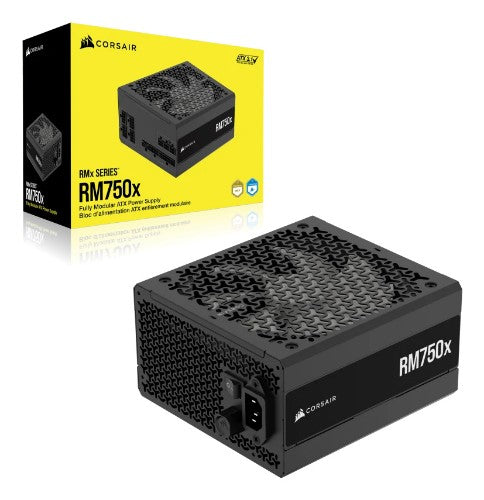

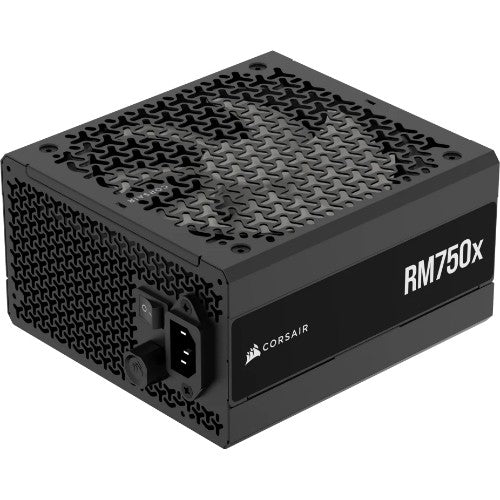

Corsair RM750x power supply unit 750 W 24-pin ATX ATX Black

750W, ATX12V 3.1, 80 PLUS Gold, 140 mm Fan, 100000 MTBF, Black, 160 x 150 x 86 mm, 3.19kg

Key Features

• Fully modular, Type-4 connectors
• Cybenetics Gold-certified
• ATX 3.1 compliant, supporting PCIe 5.1
• Zero RPM Fan Mode for near-silent operation at lower loads

Description

Power your next build with a CORSAIR RMx Series fully modular PSU for quiet, Cybenetics Gold-certified efficient performance.

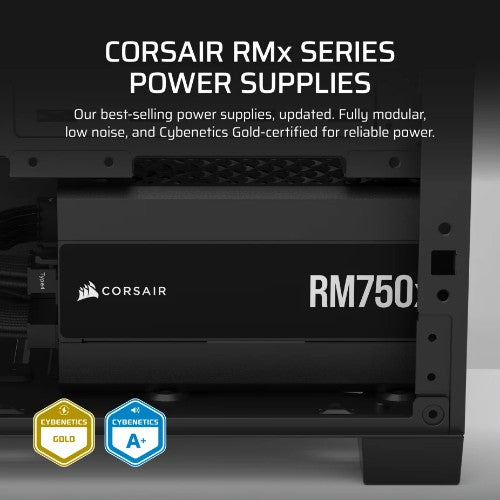

RMx SERIES
THE GOLD STANDARD OF POWER SUPPLIES
QUIET, DEPENDABLE, EFFICIENT
Our best-selling PSU, updated. This fully modular, low noise, Cybenetics Gold-certified power supply is ATX 3.1 compliant and ideal for delivering dependable power to today's top-performing PCs.

50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your PC, even under high-stress conditions.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

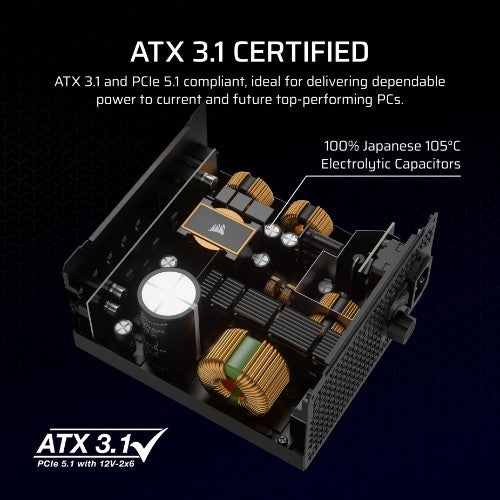

ATX 3.1 CERTIFIED
Be confident your PSU supports the latest sleep and hibernate modes and modern CPU and GPU requirements. ATX 3.1 compliance ensures full compatibility with modern components and power states.

CLEAN CABLING, EVERY TIME

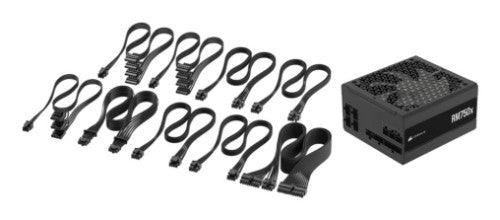

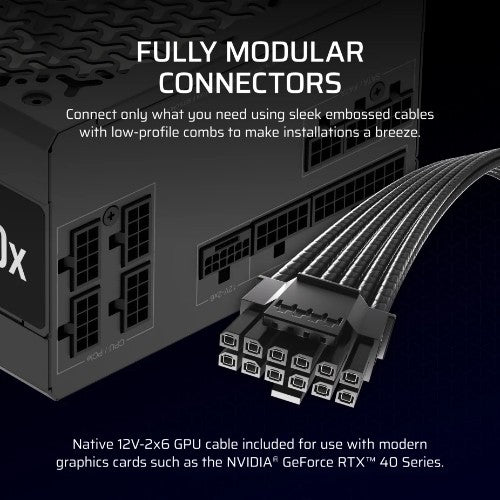

FULLY MODULAR CONNECTORS
Connect only what you need using sleek embossed cables with low-profile combs to make installations a breeze.

Native 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

THE STRONG, SILENT TYPE

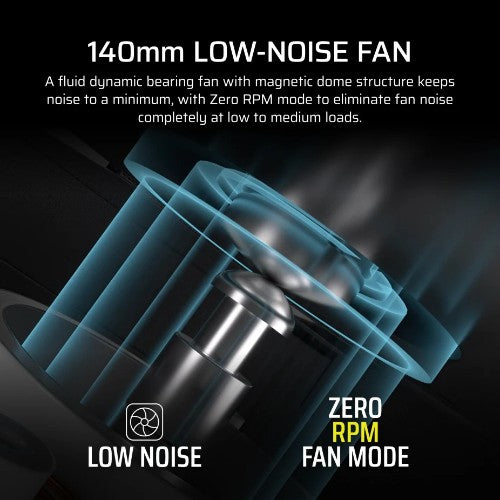

140mm LOW-NOISE FAN
A fluid dynamic bearing fan with magnetic dome structure keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

ENGAGE MANUAL CONTROLS

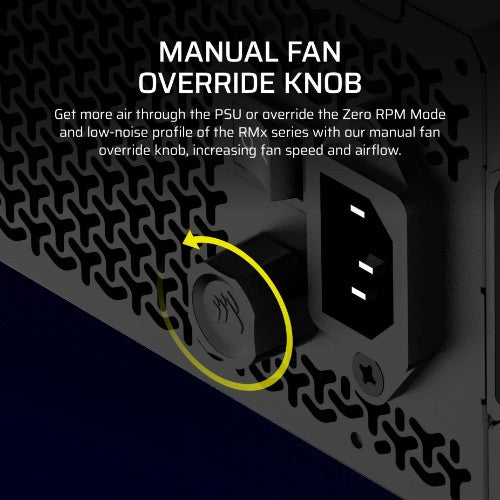

MANUAL FAN OVERRIDE KNOB
Want to get more air through the PSU or to exhaust some heat from your case? You can override the Zero RPM Mode and low-noise profile of the RMx Series with our manual fan override knob, increasing fan speed and airflow.

WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.

Specifications

Cooling
Fan diameter	14 cm
Number of fans	1 fan(s)
Fan location	Front
Cooling type	Active
Performance
Power plug type	Type G
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	14 cm
On/off switch	Yes
Number of fans	1 fan(s)
Illumination	No
Fan location	Front
Cooling type	Active
Power
Total power	750 W
Power plug type	Type G
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	10 - 5 A
Combined power (+3.3V)	150 W
Combined power (+12V)	750 W
Combined power (+5V)	150 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Ports & interfaces
Motherboard power connector	24-pin ATX
Number of SATA power connectors	8
Number of PATA power connectors	3
PCI Express power connectors (6+2 pin)	2
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Cabling type	Fully-Modular
PCI Express power connectors (12+4 pin)	1
Number of EPS connectors	2
Certificates
Compliance certificates	CE, RoHS, UKCA
80 PLUS certification	80 PLUS Gold
Weight & dimensions
Width	160 mm
Depth	86 mm
Height	150 mm
Weight	3.19 kg
Packaging data
Package type	Box
Technical details
Warranty period	10 year(s)
Compliance certificates	CE, RoHS, UKCA
Logistics data
Warranty period	10 year(s)
Other features
Power plug type	Type G
