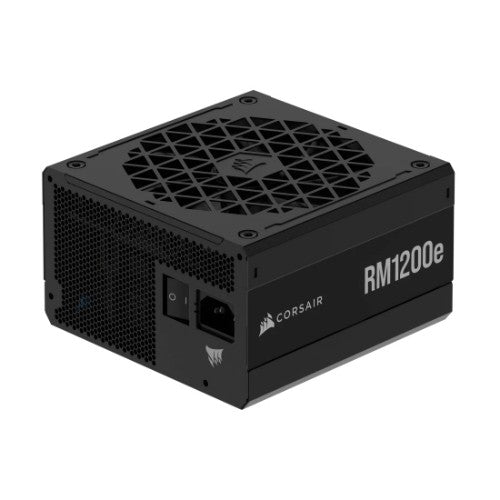

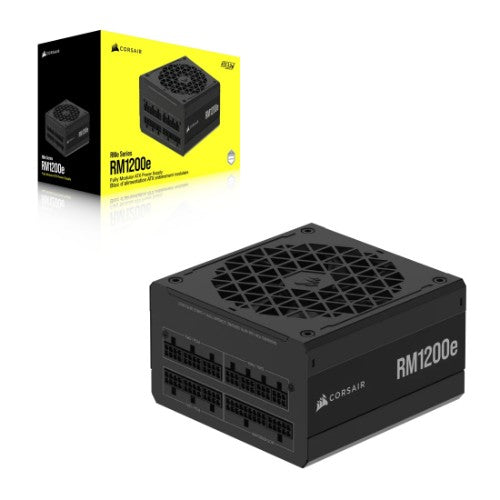

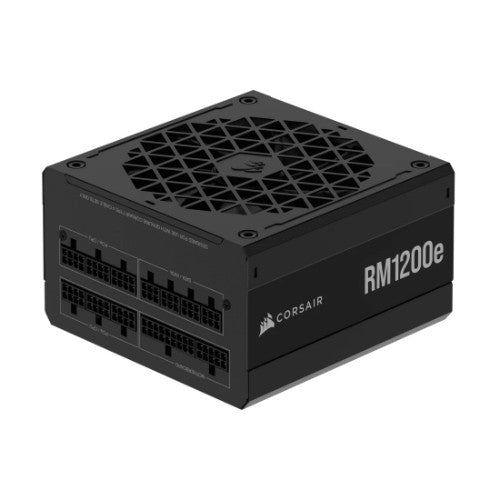

Corsair RMe Series RM1200e power supply unit 1200 W 24-pin ATX ATX Black

RM1200e Fully Modular Low-Noise ATX Power Supply

Description

CORSAIR RMe Series Fully Modular Low-Noise Power Supplies with ATX 3.1 and PCIe 5.1 compliance provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.

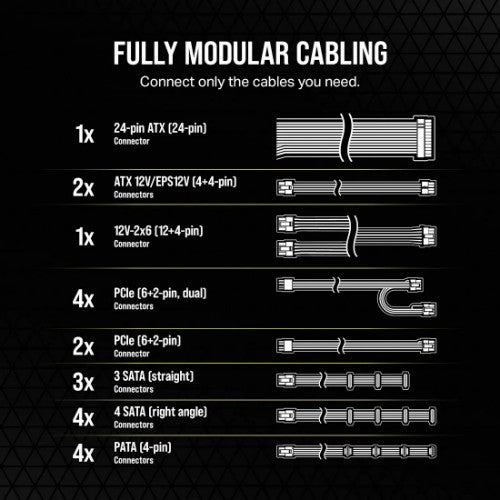

FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.

ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12v-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 50 Series.

LOW NOISE OPERATION IN A COMPACT SIZE
Shorter than the traditional power supply, the RMe offers more cable space behind your PSU.

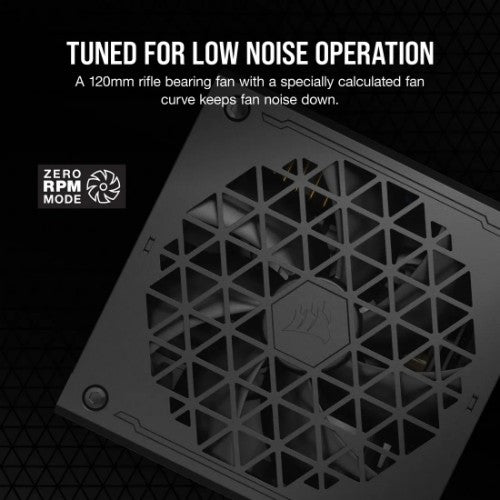

Includes Zero RPM Fan Mode for near-silent operation at lower loads.

TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.

With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

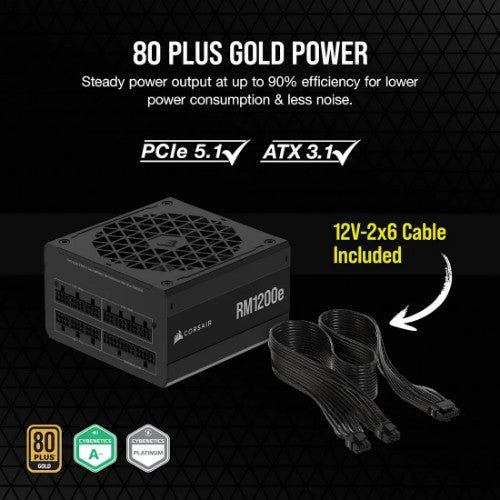

80 PLUS Gold certified
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

Specifications

Cooling
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.0
Mean time between failures (MTBF)	100000 h
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
On/off switch	Yes
Number of fans	1 fan(s)
Illumination	No
Cooling type	Active
Power
Total power	1200 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	15 A
Combined power (+3.3V)	150 W
Combined power (+12V)	1200 W
Combined power (+5V)	150 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	100 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	115,455,800 mm
Peripheral (Molex) power cable length	100,450 mm
PCI Express power cable length	60 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	2
PCI Express connector	Yes
Cabling type	Fully-Modular
Number of EPS connectors	2
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	3.38 kg
Certificates
80 PLUS certification	80 PLUS Gold
