Corsair | SKU:
CO-9050190-WW
Sold out

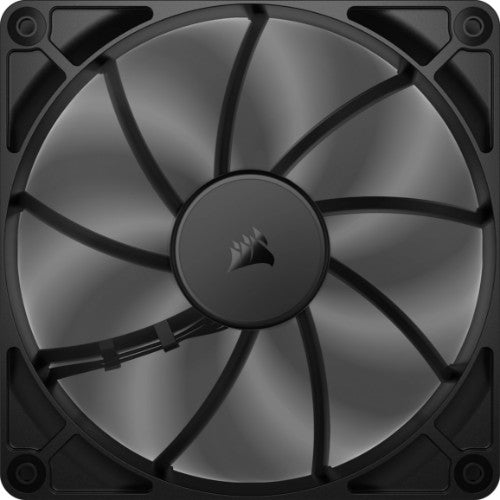

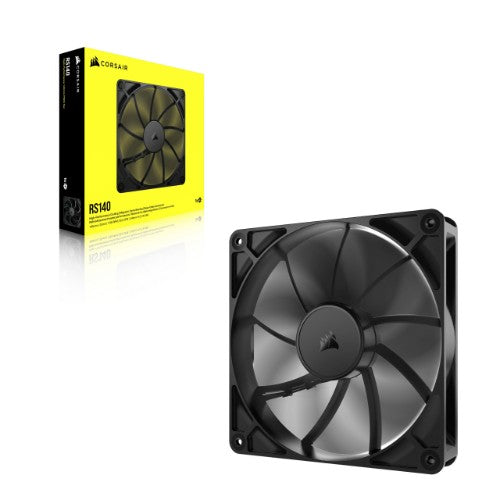

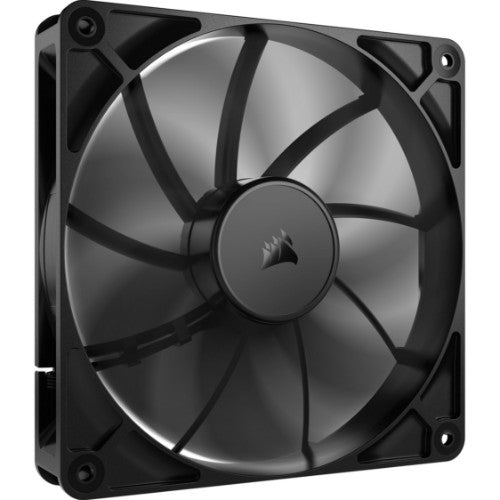

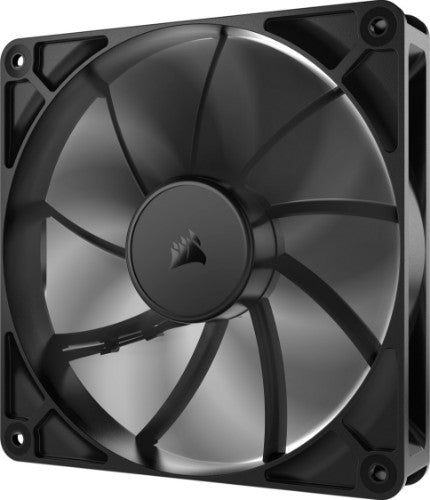

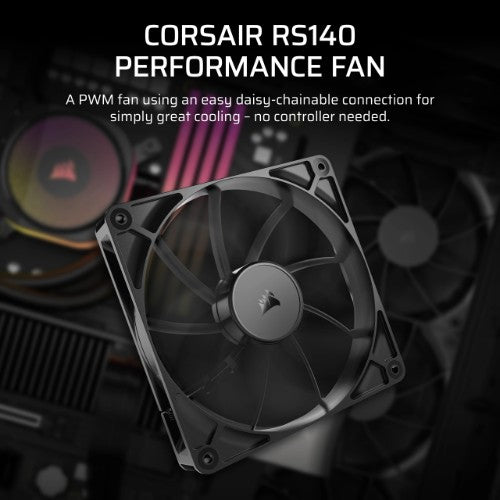

Corsair RS140 Computer case Fan 14 cm Black 1 pc(s)
€22.88
Unit price
/
Unavailable
Shipping calculated at checkout.
Corsair RS140 Computer case Fan 14 cm Black 1 pc(s) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
140 mm, 36 dB, 95.5 CFM, 4-pin PWM

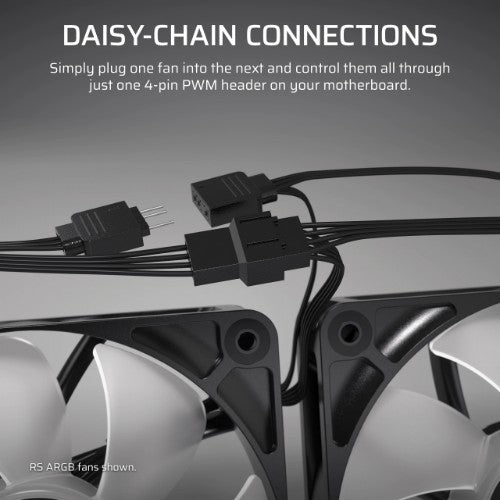

Skip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.

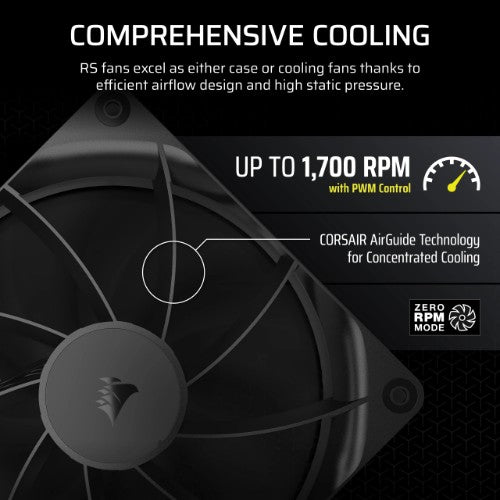

CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
STRENGTH IN NUMBERS
PROVEN COOLING PERFORMANCE
RS fans have undergone months of extensive testing to guarantee exceptional performance at the full range of PWM fan speeds set with their direct-to-motherboard connection.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise.
Key Features
- Daisy-chainable 4-pin PWM connectors
- CORSAIR AirGuide technology for concentrated airflow
- CORSAIR Magnetic Dome bearing for longevity and low noise
- Zero RPM mode at low load
Description
DIRECT-TO-MOTHERBOARD CONNECTIONSkip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
STRENGTH IN NUMBERS
PROVEN COOLING PERFORMANCE
RS fans have undergone months of extensive testing to guarantee exceptional performance at the full range of PWM fan speeds set with their direct-to-motherboard connection.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 330 RPM |
| Rotational speed (max) | 1700 RPM |
| Noise level (low speed) | 10 dB |
| Noise level (high speed) | 36 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Minimum airflow (imperial) | 14.6 cfm |
| Maximum airflow | 95.5 cfm |
| Minimum air pressure | 0.11 mmH2O |
| Maximum air pressure | 3.46 mmH2O |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Technical details | |
| Noise level (low speed) | 10 dB |
| Noise level (high speed) | 36 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Minimum airflow (imperial) | 14.6 cfm |
| Maximum airflow | 95.5 cfm |
| Minimum air pressure | 0.11 mmH2O |
| Maximum air pressure | 3.46 mmH2O |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Fan current | 0.45 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Fan weight | 293 g |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
