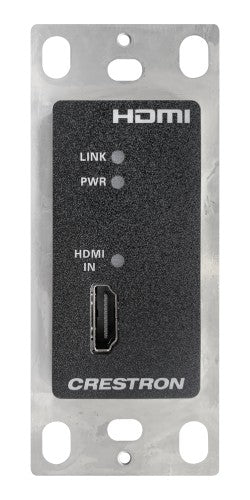

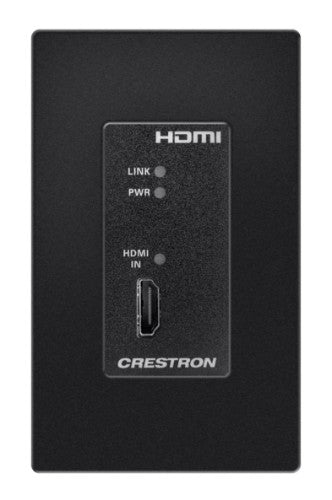

Crestron HD-TX-4KZ-101-1G-B AV extender AV transmitter Black

4K60 4:4:4, 4096x2160, HDR10+, HDCP 2.3, 60 Hz, 12 bit, 100-240 V, Black, 44 x 105 x 56 mm, 0.052 kg

Key Features

• Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
• Point-to-point extension of an HDMI® signal over a CAT5e or higher cable
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability
• One-gang wall plate design with black finish
• Decorator style faceplate required (FP-G Series sold separately)

Description

Interoperability with a DM Lite® receiver or DMPS Lite™ switcher to provide point-to-point extension of an HDMI® signal over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3. Mounts into a 1-gang electrical box.

The HD-TX-4KZ-101-1G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher for the transmission of an HDMI® signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-101-1G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

The HD-TX-4KZ-101-1G is available in two models: HD-TX-4KZ-101-1G-B (black) and HD-TX-4KZ-101-1G-W (white).

Interoperability with a DM Lite Receiver or DMPS Lite Switcher

The DM Lite output port of the HD-TX-4KZ-101-1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD‑RX‑4KZ‑101, HD‑RXA‑4KZ‑101, HD‑RXC‑4KZ‑101, and HD‑RXCA‑4KZ‑101. Supported DMPS Lite switchers are the HD‑PS621, HD‑PS622, HD‑PS401, HD‑PS402, and HD‑RX‑4K‑210‑C‑E(‑POE).

Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.

The HD-TX-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-101-1G. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-101-1G is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-TX-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

One-Gang Wall Plate Design

The HD‑TX‑4KZ‑101‑1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-TX-4KZ-101-1G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.

Specifications

Features
Material	Metal, Polycarbonate (PC)
HDCP	Yes
Colour depth	12 bit
Frame rate	60 fps
Audio formats supported	DTS, LPCM
Type	AV transmitter
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e
Maximum transfer distance	70 m
LED indicators	Activity, Power
Product colour	Black
HDCP version	2.3
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus)
Technical details
Material	Metal, Polycarbonate (PC)
HDCP	Yes
Colour depth	12 bit
Frame rate	60 fps
Audio formats supported	DTS, LPCM
Type	AV transmitter
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e
Maximum transfer distance	70 m
Product colour	Black
Compliance certificates	CE, Federal Communications Commission (FCC)
Power
Current	0.75 A
Indication
LED indicators	Activity, Power
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	44 mm
Height	105 mm
Depth	56 mm
Weight	152 g
Packaging content
Mounting brackets included	Yes
Manual	Yes
