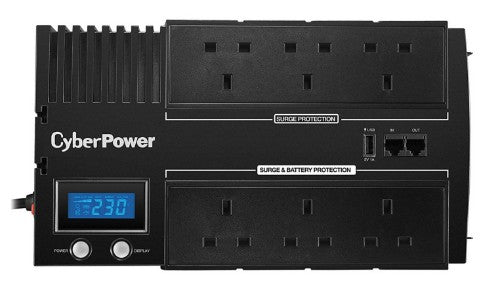

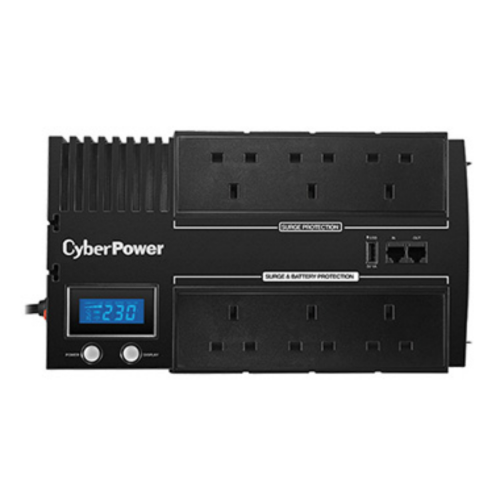

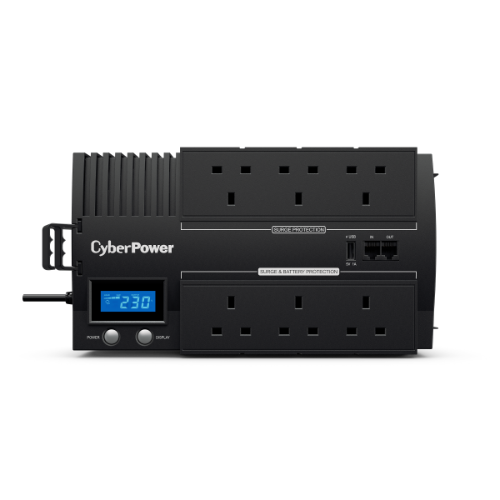

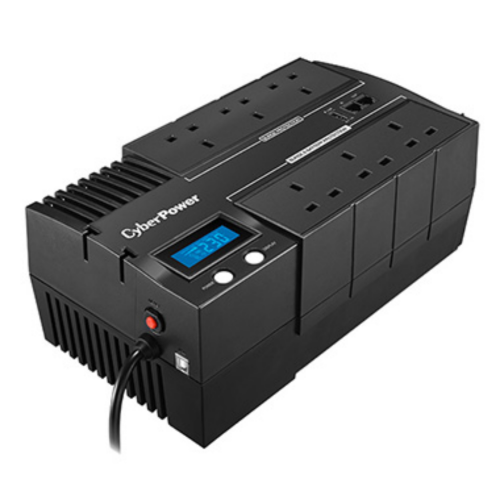

CyberPower BRICs LCD uninterruptible power supply (UPS) 1 kVA 600 W 6 AC outlet(s)

Line-interactive, 1000VA, 600W, 6 Outlets, USB, LCD

Description

The BRICs LCD BR1000ELCD UPS for home and small office computer systems and electronic devices features line conditioning and protection against surges/spikes, provides reliable battery backup and clean power supplies during brownouts or power failures. This UPS system is designed with patented GreenPower UPS bypass circuitry that improves the operating efficiency so that users can enjoy significant cost savings by reducing energy consumption and waste heat generated.

The BR1000ELCD comes with a capacity of 1000VA/600Watts and six (6) UK type receptacles, including three (3) for battery and surge protection. The multifunction LCD readout showcases real-time power/battery status at a single push-of-a-button.

RJ11/RJ45 (One-in/One-out) port is included for the protection of phone and network line. The EMI/RFI filters increase the tolerance of noises and load interferences so that improve the picture and sound quality in audio/video systems. Featuring Automatic Voltage Regulation (AVR) technology that helps to stabilize AC voltage and to provide protection to connected equipment.The unit offers one (1) HID USB connectivity port with PC as well as one (1) 5VDC USB 2.0 charging port for portable devices such as mobile phones, MP3 players, and cameras. A cable collector apparatus is provided for an easy and tidy cord management.

PowerPanel Personal Edition UPS Management software automatically saves computer files and gracefully shuts down the connected devices in the event of power loss or failures. For as long as you own this product, CyberPower will cover up to $50,000 of properly connected equipment if it’s ever damaged by a surge, including surges due to lightning strikes.

Specifications

Power
Output power	600 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Power factor	0.6
Output power capacity	1 kVA
Ports & interfaces
Cable length	1.5 m
AC outlets quantity	6 AC outlet(s)
Modem (RJ-11) ports	2
Ethernet LAN (RJ-45) ports	2
Battery
Battery type	RBP0006
Number of batteries supported	1
Battery voltage	12 V
Battery capacity	9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	6 min
Typical backup time at full load	1 min
Hot-swap battery	Yes
Performance
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Noise level	40 dB
Audible alarm(s)	Yes
Features
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Output power	600 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Power factor	0.6
Noise level	40 dB
Audible alarm(s)	Yes
Output power capacity	1 kVA
Input frequency	45/65 Hz
Design
Form factor	Compact
LED indicators	Yes
Product colour	Black
Certification	CE
Cable length	1.5 m
Housing material	Plastic
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Technical details
Compliance certificates	RoHS
Certificates
Certification	CE
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Bundled software	PPPE
Weight & dimensions
Weight	6.5 kg
Width	166 mm
Height	118 mm
Depth	288 mm
Packaging data
Cables included	USB cable
Bundled software	PPPE
Other features
Battery type	RBP0006
