CyberPower PR1000ERT2U uninterruptible power supply (UPS) Line-Interactive 1 kVA 1000 W 10 AC outlet(s)

PR1000ERT2U, 220/230/240 VAC, 50/60 Hz, 1000 VA, 1000 W, IEC C14, 10x IEC C13, RJ-45, 433x86.5x412 mm

Key Features

• Line-interactive UPS Topology
• Energy Saving Technology
• Active PFC Compatible
• Pure Sine Wave Output
• Night Mode Design
• Tool-less Battery Replacement
• Battery Management Technology
• High Output Power Factor
• Automatic Voltage Regulation (AVR)
• Overload Protection
• Critical/Non-critical Load Outlets
• Hot-swappable Batteries
• Surge and Spike Protection
• EMI and RFI Filtration
• LCD Status Display
• USB Connectivity Port
• Serial Connectivity Port
• Emergency Power Off (EPO) Port
• PowerPanel® Management Software
• SNMP/HTTP Remote Management Capability (Optional)

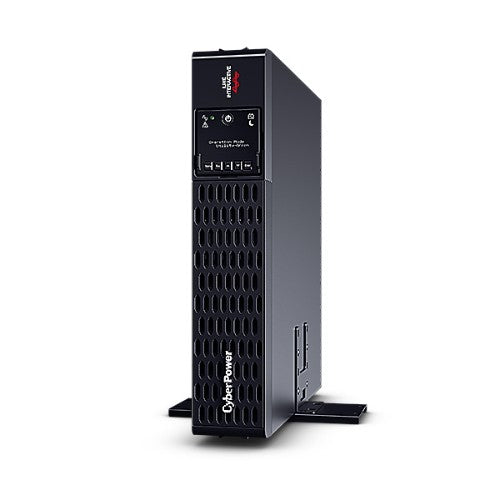

• Rack/Tower Convertible Configurations

Description

CyberPower PR1000ERT2U Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.

Multiple UPS systems can be connected to a single main Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems can be shut down immediately with the EPO button. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.

Specifications

Power
Output power factor	1
Output power	1000 W
Input operation voltage (min)	159 V
Input operation voltage (max)	288 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Maximum current	10 A
Emergency Power Off (EPO)	Yes
Output power capacity	1 kVA
Power Factor Correction (PFC) type	Active
Ports & interfaces
Cable length	1.8 m
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
Battery
Battery type	RBP0128
Number of batteries supported	1
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at half load	21 min
Typical backup time at full load	7 min
Hot-swap battery	Yes
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Response time	4 ms
LED indicators	Fault, Power, Status
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Network
Power protection features	Overload
Noise level	52.5 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Web-based management	Yes
Management protocols	SNMP/HTTP
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Output power factor	1
Response time	4 ms
Output power	1000 W
Input operation voltage (min)	159 V
Input operation voltage (max)	288 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Maximum current	10 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Network
Emergency Power Off (EPO)	Yes
Power protection features	Overload
Noise level	52.5 dB
Audible alarm(s)	Yes
Output power capacity	1 kVA
Power Factor Correction (PFC) type	Active
Input frequency	50/60 Hz
Heat dissipation	47.4 BTU/h
Design
Country of origin	China
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Fault, Power, Status
Product colour	Black
Cooling type	Active
Cable length	1.8 m
Built-in fan	Yes
Housing material	Metal
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	8504408590
Warranty period	3 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, UL, VCCI
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, UL, VCCI
Management features
Web-based management	Yes
Management protocols	SNMP/HTTP
Packaging content
Cables included	Serial, USB cable
Rack mount kit	Yes
Manual	Yes
Cooling
Cooling type	Active
Built-in fan	Yes
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Weight & dimensions
Package width	560 mm
Package depth	530 mm
Package height	275 mm
Weight	22.4 kg
Width	433 mm
Package weight	29 kg
Height	86.5 mm
Depth	412 mm
Packaging data
Cables included	Serial, USB cable
Rack mount kit	Yes
Manual	Yes
Package width	560 mm
Package depth	530 mm
Package height	275 mm
Package weight	29 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
Warranty period	3 year(s)
Other features
Battery type	RBP0128
