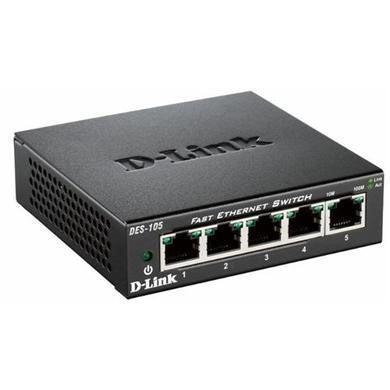

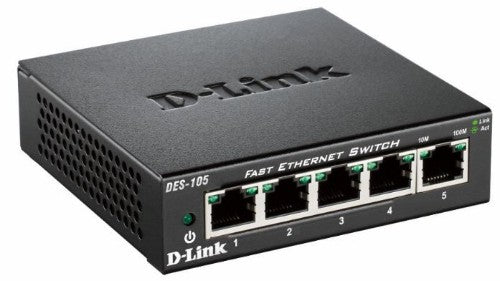

D-Link 5-Port Fast Ethernet Unmanaged Desktop Switch

DES-105 - 5 Port Fast Ethernet Switch, Auto MDI/MDIX, QoS, Black

Description

- Plug and Play operation
- 5 Fast Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- D-Link Green™ technology, saves energy and increases the product’s lifespan

D-Link’s DES-105 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes this switch completely silent, ideal for offices, libraries or meeting rooms.

Robust design

The DES-105 are designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.

QoS (Quality of Service)

Despite being an unmanaged, Plug and Play switch, the DES-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

Power-saving technology

The DES-105 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Power connector	DC-in jack
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Network
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Packet buffer memory	0.384 MB
MAC address table	2000 entries
Supported data transfer rates	10/100 Mbps
Switching capacity	1 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Security
MAC address filtering	Yes
Design
Product colour	Black
LED indicators	Link, Power
Housing material	Metal
Rack mounting	No
Certification	RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Performance
Mean time between failures (MTBF)	495709 h
Packet buffer memory	0.384 MB
Harmonized System (HS) code	85176990
Power
Power consumption (typical)	1.9 W
Input voltage	5 V
Input current	1 A
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Data transfer rate	200 Mbit/s
Dimensions (WxDxH)	100 x 98 x 28 mm
Connectivity technology	Wired
Input voltage	5 V
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Weight	265 g
Packaging data
Package width	170 mm
Package depth	220 mm
Package height	62 mm
Package weight	450 g
Technical details
Product colour	Black
Mean time between failures (MTBF)	495709 h
Housing material	Metal
Rack mounting	No
Shipping (inner) case width	23 cm
Shipping (inner) case net weight	4.5 kg
Shipping (inner) case length	33.5 cm
Shipping (inner) case height	36.6 cm
Products per shipping (inner) case	10 pc(s)
Products per pallet (sea)	750 pc(s)
Products per pallet (air)	750 pc(s)
Pallet gross width	110 cm
Pallet gross length	120 cm
Pallet height (sea)	2.04 m
Pallet height (air)	2.04 m
Pallet gross weight (sea)	434 kg
Pallet gross weight (air)	434 kg
Master (outer) cases per pallet (sea)	75 pc(s)
Master (outer) cases per pallet (air)	75 pc(s)
Shipping (inner) case gross weight	5.5 kg
Memory
Packet buffer memory	0.384 MB
Certificates
Certification	RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Indication
LED indicators	Link, Power
Logistics data
Harmonized System (HS) code	85176990
