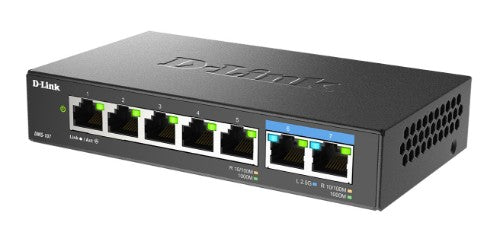

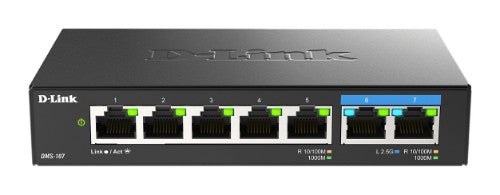

D-Link 7-Port Multi-Gigabit Unmanaged Switch

7-Port Multi-Gigabit Unmanaged Switch, UK

Key Features

• x5 Gigabit Ethernet ports
• x2 2.5Gbps Ethernet Ports
• Durable metal housing
• Energy efficient, fanless
• QoS support on Gigabit ports
• Ideal for Wi-Fi 6

Description

Experience multi-Gigabit Ethernet speeds.
The DMS-107 is a multi-Gigabit Ethernet plug-and-play switch that provides ultra-fast connectivity to your network core or network-attached storage (NAS) device. You can easily connect multiple computers within minutes, and start sharing an internet connection, files, music, and video across your small office or home network.

2.5 Gigabit Ethernet
Save time transferring large files and improve sharing and productivity

Effortless multi-Gigabit networking
Easily upgrade or extend your home or small business network

Compact Metal Housing
Sturdy, compact metal housing with fanless design for silent operation

Energy Efficient Design
Automatic power saving features to reduce power usage

Ready for Wi-Fi 6.

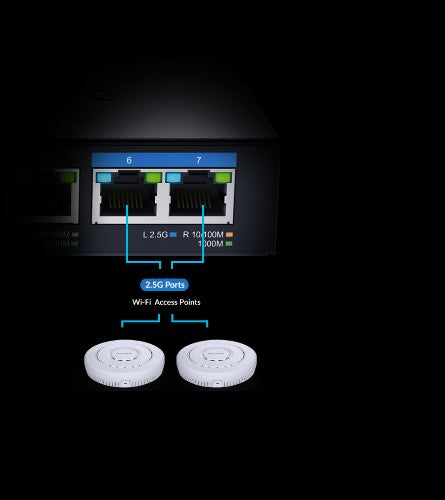

It comes with multi-Gigabit ports for maximum throughput and performance - ideal for enjoying unrestricted Wi-Fi 6 devices, high-end gaming computers and workstations. The multi-Gigabit ports eliminate potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.

Effortless traffic optimisation.
With 2.5 Gigabit transfer speeds on uplink ports, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The switch’s 802.1p Quality of Service (QoS) functionality on Gigabit ports automatically organises and prioritises time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice calls.

Plug-and-pay convenience.
The DMS-107 is a plug-and-play device that requires no advanced technical configuration. Plug-and-play makes it easy to instantly create a network connected to the internet.

Designed for life, built to last.
The DMS-107 features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving.
The compact, metal housing and fanless design mean the switches can be placed virtually anywhere and operate silently. The DMS-107 is designed with energy efficiency in mind. The switches automatically reduce power to ports that are inactive or not connected, and support the IEEE 802.3az Energy-Efficient Ethernet standard.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Cloud-managed	No
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
2.5G Ethernet (copper) ports quantity	2
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T
Network
MAC address auto-learning supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Packet buffer memory	2 MB
MAC address table	2000 entries
Switching capacity	20 Gbit/s
Store-and-forward	Yes
Number of queues	8
Forwarding rate	14.88 Mpps
Design
Product colour	Black
LED indicators	Activity, Link, Power
Housing material	Metal
Performance
Mean time between failures (MTBF)	944277.78 h
Fanless	Yes
Packet buffer memory	2 MB
Power
Power consumption (max)	3.37 W
Power consumption (typical)	3.37 W
Input current	0.5 A

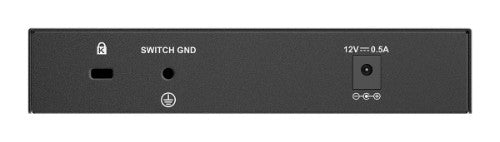

DC input voltage	12 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Warranty period	5 year(s)
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	14.28 BTU/h
Weight & dimensions
Width	145 mm
Depth	28 mm
Height	82 mm
Weight	295.2 g
Sustainability
Sustainability compliance	Yes
Technical details
Product colour	Black
Mean time between failures (MTBF)	944277.78 h
Housing material	Metal
Sustainability compliance	Yes
Warranty period	5 year(s)
Compliance certificates	BSMI, CE, Low Voltage Directive (LVD), RoHS
Memory
Packet buffer memory	2 MB
Certificates
Compliance certificates	BSMI, CE, Low Voltage Directive (LVD), RoHS
Indication
LED indicators	Activity, Link, Power
