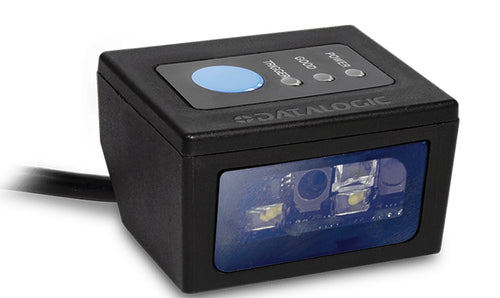

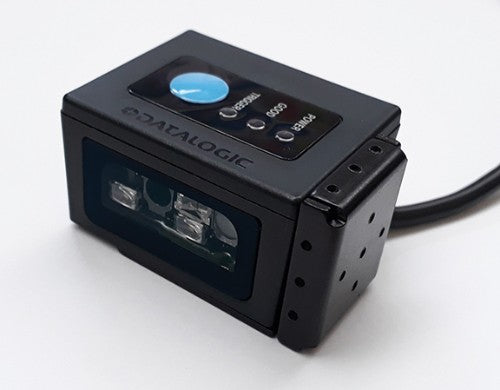

Datalogic DSM04XX Fixed bar code reader 1D/2D Linear Black

1D/2D, MP-DL, RJ-45, 47 x 27 x 38 mm, Black

Description

Get the greatest performance in a small enclosure
The DSM04XX from Datalogic is the latest compact fixed scan module to suit all of your needs. It has been developed to empower a variety of different systems such as kiosks, ticketing machines, access control systems, autonomous robots, and lab test equipment. The DSM04XX has a rugged construction. Its high impact resin body will withstand knocks and is resistant to virtually any cleaning solvents and disinfectants. This is the module for you when you need to scan both 1D and 2D barcodes from the tightest of spaces. The DSM04XX really does prove that size isn’t everything.

Discover the power in something so small
Available in several models with different resolutions and field of view, the DSM04XX will suit all of your applications. The wide-angle model is particularly useful when space is at a premium. The module itself is only 49 cm3 (3 in3). You will have to see it to believe it when it comes to the size of the DSM04XX. It can rest comfortably in the palm of your hand and is 60% smaller than the well known Datalogic GFS44XX scan modules. The DSM04XX is the product for you if you need high performance in a small package.

Fit it wherever you need to
The DSM04XX offers electrical and mechanical fittings for all possible integration options. You get all of the mounting hardware included within the box. Simply install your device from any side and at an angle of your choosing. It’s highly resistant to motion and low light conditions for the more rugged applications you may choose to use it for. The highly visible 4-dot aimer and audible feedback beep will confirm when you have a good read. As with many other Datalogic products, the DSM04XX comes with the Green Spot technology for highly visible indication of a good-read feedback directly on the code just read.

It is small but tough and versatile too
Whatever enclosure you choose to embed this barcode reader in, you know it will remain in operation for years to come. With its tough IP54 casing it is fully protected from both dust and water ingress. Despite the size and rugged exterior, the DSM04XX still provides interfacing options to suit all requirements. Whether you need RS-232, USB, or multiple interfaces, the device provides plug and play installation. Scan modes are easily configured between Triggered, Autosense or Soft Trigger. The DSM40XX is the perfect choice when it comes to finding your next future-proof scan module.

Specifications

Scanning
Type	Fixed bar code reader
Linear (1D) barcodes supported	Code 11, Code 128, Code 39, Code 93, EAN 128, Interleaved 2 of 5, MSI, Matrix 2 of 5, Pharmacode, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 100000 lx
Optical sensor resolution (W x H)	1280 x 960 pixels
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	RJ-45
Performance
International Protection (IP) code	IP54
Product colour	Black
Light levels (direct sunlight)	0 - 100000 lx
Design
Type	Fixed bar code reader
International Protection (IP) code	IP54
Product colour	Black
Power
Power consumption	214 mA
Power source type	DC
Input voltage	5 V
Weight & dimensions
Width	47 mm
Depth	27 mm
Height	38 mm
Weight	96 g
Technical details
Type	Fixed bar code reader
International Protection (IP) code	IP54
Product colour	Black
Harmonized System (HS) code	84716070
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Light levels (direct sunlight)	0 - 100000 lx
Logistics data
Harmonized System (HS) code	84716070
