Datalogic | SKU:
PM9100-D433RBK20

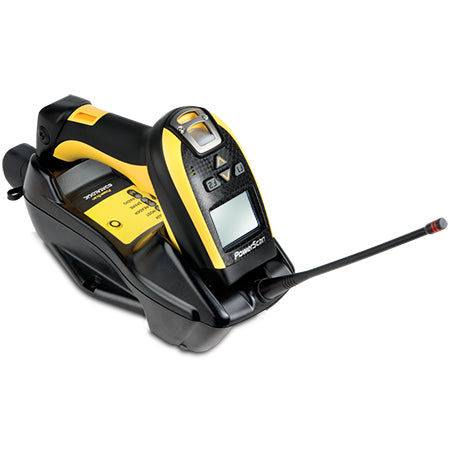

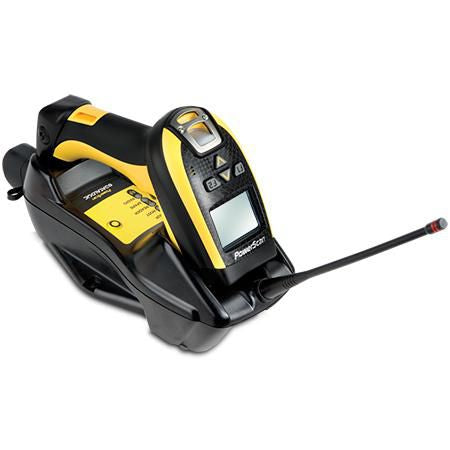

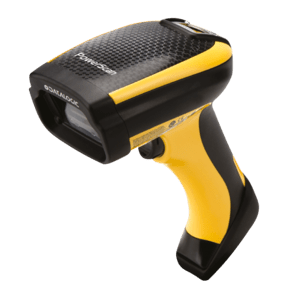

Datalogic PowerScan PM9100 Handheld bar code reader 1D LED Black, Yellow
€844.89
Unit price
/
Unavailable
Shipping calculated at checkout.
Datalogic PowerScan PM9100 Handheld bar code reader 1D LED Black, Yellow is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
1D, 433 MHz, 48x132, RS-232, RS-485, IP65, Li-Ion 2150 mAh, 212x110x74 mm, 435 g, RS-232
The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Description
The PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogic’s STAR Cordless System narrow band radio. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Yaw reading angle | -70 - 70° |
| Tilt reading angle | -45 - 45° |
| Sensor type | LED |
| Scanner type | 1D |
| Pitch reading angle | -75 - 75° |
| Ports & interfaces | |
| Wireless range | 50 m |
| Operating frequency | 433 MHz |
| Standard interfaces | RS-232 |
| Performance | |
| Protection features | Shock resistant |
| LED indicators | Yes |
| Keys quantity | 4 keys |
| Built-in display | Yes |
| Backlight display | Yes |
| International Protection (IP) code | IP65 |
| Display resolution | 48 x 132 pixels |
| Product colour | Black, Yellow |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Shock resistant |
| LED indicators | Yes |
| Keys quantity | 4 keys |
| International Protection (IP) code | IP65 |
| Product colour | Black, Yellow |
| Power | |
| Power consumption | 500 mA |
| Power source type | Battery |
| Battery life | 4 h |
| Number of reads per charge | 50000 |
| Input voltage | 10 - 30 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2150 mAh |
| Weight & dimensions | |
| Base dimensions | 240 x 108 x 95 mm |
| Width | 212 mm |
| Depth | 110 mm |
| Height | 74 mm |
| Weight | 435 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Shock resistant |
| LED indicators | Yes |
| Keys quantity | 4 keys |
| Built-in display | Yes |
| Backlight display | Yes |
| International Protection (IP) code | IP65 |
| Display resolution | 48 x 132 pixels |
| Product colour | Black, Yellow |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging data | |
| Cables included | RS-232 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Cables included | RS-232 |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
