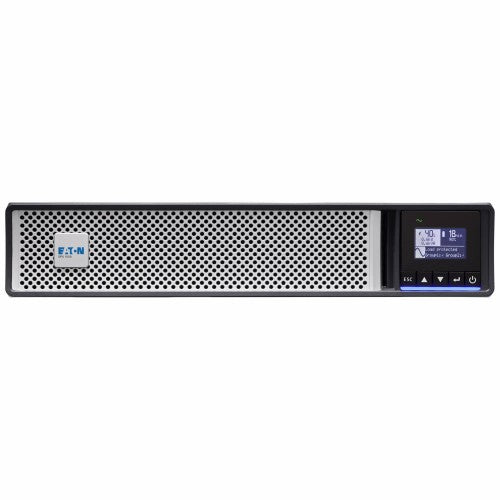

Eaton 5PX1000IRT2UG2BS uninterruptible power supply (UPS) Line-Interactive 1 kVA 1000 W 8 AC outlet(s)

The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximising IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.,

Power
Output power factor	1
Output power	1000 W
Input operation voltage (min)	150 V
Input operation voltage (max)	294 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Power factor	1
Output power capacity	1 kVA
Performance
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Power protection features	Overdischarge
Noise level	40 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Output power factor	1
Output power	1000 W
Input operation voltage (min)	150 V
Input operation voltage (max)	294 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Power protection features	Overdischarge
Power factor	1
Noise level	40 dB
Output power capacity	1 kVA
Input frequency	47/70 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
USB port type	USB Type-B
Battery
Number of batteries supported	4
Battery voltage	12 V
Battery capacity	7 Ah
Battery technology	Sealed Lead Acid (VRLA)
Automatic battery test	Yes
Design
Form factor	Rackmount
Product colour	Black, Silver
Certification	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm Ukr UKCA
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	CE, ENERGY STAR, REACH, RoHS
Weight & dimensions
Weight	19.8 kg
Width	498 mm
Height	240 mm
Depth	585 mm
Packaging data
Quick installation guide	Yes
Cables included	Input power cable, Serial, USB cable
Rack mount kit	Yes
Certificates
Certification	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm Ukr UKCA
Packaging content
Quick installation guide	Yes
Cables included	Input power cable, Serial, USB cable
Rack mount kit	Yes
