Eaton | SKU:
9PX8KIRTNBPG2
17% off

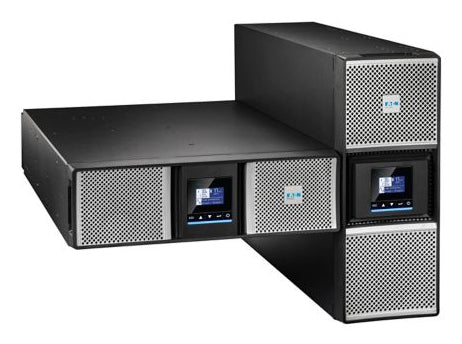

Eaton 9PX 8000i RT4U HotSwap Netpack G2 uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W
€5,954.94
€7,178.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton 9PX 8000i RT4U HotSwap Netpack G2 uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
9PX Gen2 UPS, Rack/tower, 4U, 8000VA, 8000W, 230V, LCD, 200-240V, Black/silver, 83.4 kg
Description
Eaton 9PX Gen2 UPS HotSwap Netpack, 8000 VA, 8000 W, Input: Hardwired, Outputs: (4) C39, Hardwired, Rack/tower, 4U, Gigabit Network card included, Rack-mounting kit included, Maintenance bypass includedSpecifications
| Power | |
|---|---|
| Input power factor | 0.99 |
| Output power | 8000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 97.3% |
| Output power capacity | 8 kVA |
| Efficiency (ECO mode) | 99.5% |
| Ports & interfaces | |
| Cable length | 1.8 m |
| USB port | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| RS-232 ports | 1 |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| LED indicators | Yes |
| Noise level | 37 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Input power factor | 0.99 |
| Output power | 8000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 97.3% |
| Noise level | 37 dB |
| Output power capacity | 8 kVA |
| Efficiency (ECO mode) | 99.5% |
| Input frequency | 40/70 Hz |
| Heat dissipation | 728 BTU/h |
| Power consumption (average operating) | 214 W |
| Battery | |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 15.2 min |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 4U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 |
| Cable length | 1.8 m |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | BSMI, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
| Certificates | |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 |
| Compliance certificates | BSMI, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Output power cable, USB cable |
| Rack mount kit | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Weight | 83.4 kg |
| Width | 440 mm |
| Height | 174 mm |
| Depth | 725 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Output power cable, USB cable |
| Rack mount kit | Yes |
