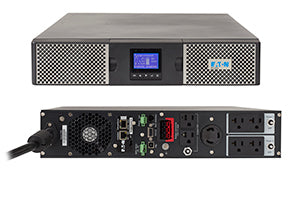

Eaton 9PX3000RT uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 7 AC outlet(s)

Eaton 9PX UPS, 2U, Double-Conversion, 3000VA/2700W, 100-144V/120V, 50/60Hz, USB, RS-232, 47dB, 1x NEMA 5L-30P, 6x NEMA 5-20R, 1x NEMA L5-30R, LCD, 28.6kg, Black/Silver

Description

Business continuity for edge computing

When you need flexible protection for equipment in IT racks, network closets and mission-critical applications, look no further than the Eaton® 9PX UPS. Providing solutions that are reliable,
versatile, powerful and efficient, the 9PX integrates seamlessly
into just about any environment.
With double-conversion topology for constant power conditioning and ENERGY STAR qualification, the 9PX supports your overall goal of business continuity. It’s also built for scalable deployment and features a graphical LCD interface that enables local access to configurations and settings, history and diagnostics, energy consumption and load segment control.

Take a closer look

As a stand-alone, online double-conversion UPS, 9PX rack/ tower (RT) models can withstand harsh electrical environments for a variety of critical applications including IT, edge networks, industrial automation, healthcare and K-12. For edge networks and on-premise installations, Eaton focuses on integration within the virtualized environment. This means you can improve your infrastructure performance through virtual machine (VM) centric management, disaster recovery and validated integration capabilities.

The right 9PX solution may also include a software client that supports 2N (or N+1) UPS-protected graceful shutdown, a maintenance bypass to keep loads running during UPS replacement, or a rack to organize all of your IT equipment and cabling. It’s all about ensuring seamless integration and compatibility.

Specifications

Power
Output power	2700 W
Input operation voltage (min)	100 V
Input operation voltage (max)	144 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Efficiency	91%
Output voltage Total Harmonic Distortion (THD)	3%
Input current Total Harmonic Distortion (THD)	3%
Output power capacity	3 kVA
Ports & interfaces
Cable length	2.44 m
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	7 AC outlet(s)
AC outlet types	NEMA 5–20R, NEMA L5-30R
Power plug	NEMA L5-30P
USB 2.0 ports quantity	1
RS-232 ports	1
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Auto-restart	Yes
Number of input phases	1
Response time	0 ms
LED indicators	Yes
Surge protection	Yes
Surge protection features	Network
Noise level	47 dB
Features
Output frequency	50/60 Hz
Web-based management	Yes
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Auto-restart	Yes
Number of input phases	1
Response time	0 ms
Output power	2700 W
Input operation voltage (min)	100 V
Input operation voltage (max)	144 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Efficiency	91%
Surge protection	Yes
Surge protection features	Network
Output voltage Total Harmonic Distortion (THD)	3%
Noise level	47 dB
Input current Total Harmonic Distortion (THD)	3%
Output power capacity	3 kVA
Input frequency	40/70 Hz
Package type	Box
Battery
Battery technology	Sealed Lead Acid (VRLA)
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
Cable length	2.44 m
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 96%
Storage relative humidity (H-H)	0 - 96%
Operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Management features
Web-based management	Yes
Weight & dimensions
Package type	Box
Weight	28.6 kg
Width	440 mm
Height	86.5 mm
Depth	605 mm
Packaging data
Cables included	RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Bracket	Yes
Package type	Box
Management card included	No
Logistics data
Harmonized System (HS) code	85078000
Certificates
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
Other features
Nominal output voltage	120 V
Nominal input voltage	120 V
Packaging content
Cables included	RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Bracket	Yes
