Eaton | SKU:
9SX11KI
Sold out

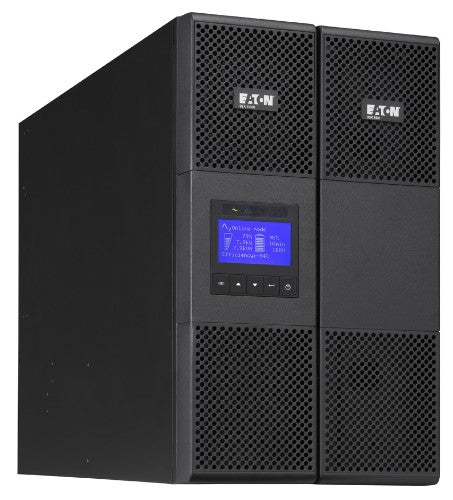

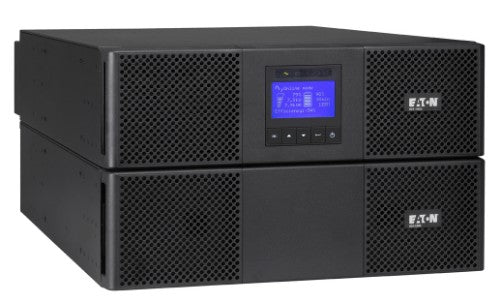

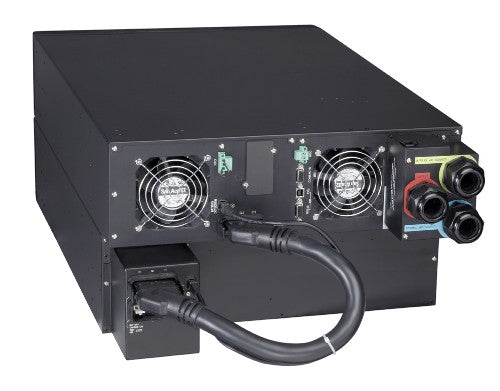

Eaton 9SX11Ki 11 kVA 10000 W
€5,304.41
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton 9SX11Ki 11 kVA 10000 W is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
11 kVA, 10 kW, LCD, Terminal, USB, RS-232, 50 dB, 86 kg
Description
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.Specifications
| Power | |
|---|---|
| Output voltage regulation | 1% |
| Output power | 10000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 250 V |
| Maximum current | 150 A |
| Efficiency | 98% |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 11 kVA |
| Performance | |
| Number of phases | 1 |
| Noise level | 50 dB |
| Features | |
| Output voltage regulation | 1% |
| Output power | 10000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 250 V |
| Maximum current | 150 A |
| Efficiency | 98% |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 50 dB |
| Input current Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 11 kVA |
| Input frequency | 40/70 Hz |
| Number of phases | 1 |
| Ports & interfaces | |
| AC outlet types | Terminal |
| Power plug | Terminal |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Typical backup time at half load | 9 min |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 6U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Safety | EN 62040-1, UL 1778, CSA 22.2 |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Weight | 86 kg |
| Width | 260 mm |
| Height | 440 mm |
| Depth | 700 mm |
| Certificates | |
| Safety | EN 62040-1, UL 1778, CSA 22.2 |
| Other features | |
| Number of phases | 1 |
