Eaton 9SX1500IBS uninterruptible power supply (UPS) Double-conversion (Online) 0.7 kVA 630 W 6 AC outlet(s)
Eaton 9SX1500IBS uninterruptible power supply (UPS) Double-conversion (Online) 0.7 kVA 630 W 6 AC outlet(s) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Description
Continuous Power with Double-Conversion Assurance
Engineered with an online double-conversion topology, the 9SX1500IBS delivers clean, uninterrupted 630W output—ideal for sensitive electronics and mission-critical systems.
Six IEC C13 Outlets for Versatile Equipment Support
With six C13 couplers and a C14 plug, this UPS offers stable, high-quality power distribution in IT environments, professional workstations, and enterprise setups.
Trusted Battery Performance for Secure Runtime
Featuring sealed lead acid (VRLA) battery tech, 9Ah capacity, and 12V output, this model keeps systems running reliably when the grid stumbles or drops out.

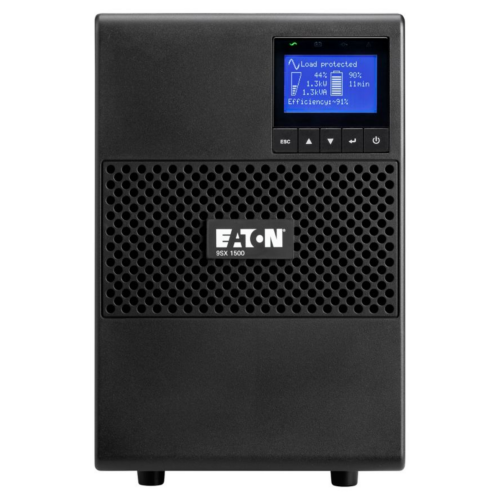

Intuitive LCD Interface for Real-Time Monitoring
Stay informed at a glance with a full-color LCD display that shows vital operating metrics, alerts, and battery status—bringing clarity to your power infrastructure.
Built to Meet Global Safety and Compliance Standards
Certified to CE, UL 1778, cULus, and IEC/EN 62040 series standards, this UPS is designed to safeguard your tech with world-class surge protection and safety compliance.
Specifications
| Power | |
|---|---|
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 630 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 87.4% |
| Output power capacity | 0.7 kVA |
| Efficiency (ECO mode) | 93% |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Noise level | 40 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 630 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 87.4% |
| Noise level | 40 dB |
| Output power capacity | 0.7 kVA |
| Efficiency (ECO mode) | 93% |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Serial ports quantity | 1 |
| USB port type | USB Type-B |
| Battery | |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |

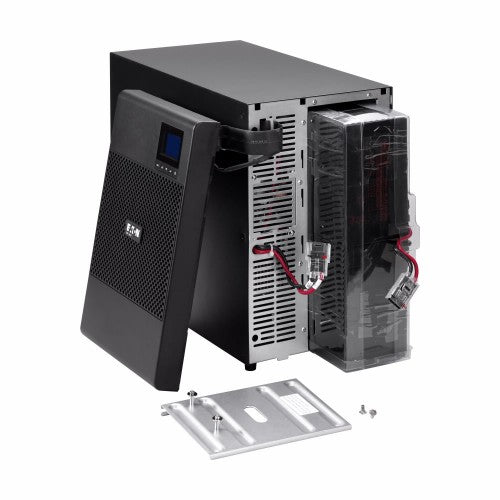

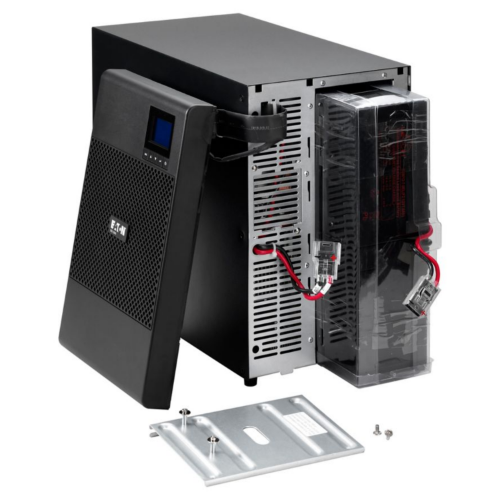

| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Certification | IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus Listed EAC |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Weight & dimensions | |
| Weight | 11.9 kg |
| Width | 296 mm |
| Height | 377 mm |
| Depth | 570 mm |
| Packaging data | |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | No |
| Certificates | |
| Certification | IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus Listed EAC |
| Packaging content | |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | No |
