Description

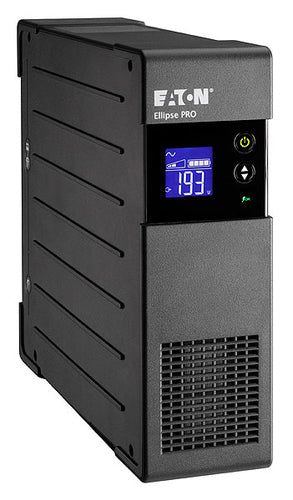

The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard. - LCD display for real-time status and measurements. - Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost). - EcoControl function helps you save up to 20% energy compared to previous generation UPSs. - Includes a high performance surge-protection device which complies with IEC 61643-1 standard. - Up to 8 outlets to connect your PC & peripherals. - Convenient extra-flat design for easy installation in any office environment. - USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings. - Protects data connections such as Ethernet, internet and telephone lines.,
| Power | |
|---|---|
| Output power | 510 W |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 285 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 0.85 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| LED indicators | Yes |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network, Telephone |
| Features | |
| Output frequency | 50 Hz |
| UPS topology | Line-Interactive |
| Output power | 510 W |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 285 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network, Telephone |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 0.85 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |

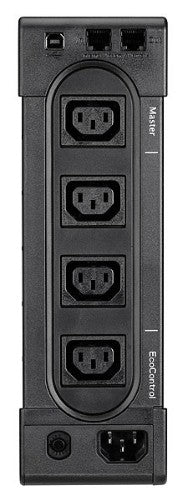

| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 9 min |
| Hot-swap battery | No |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Safety | IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE |

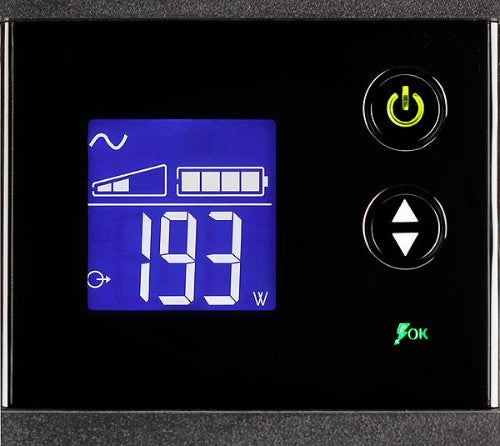

| Display type | LCD |
| Technical details | |
| Output frequency | 50 Hz |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Weight | 7.3 kg |
| Width | 82 mm |
| Height | 260 mm |
| Depth | 285 mm |
| Certificates | |
| Safety | IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE |
| Other features | |
| Nominal input voltage | 230 V |
