Eaton | SKU:
EMAH06

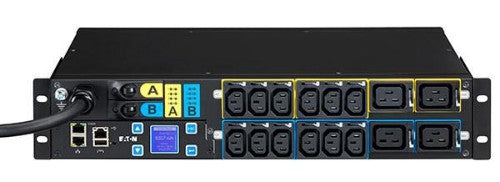

Eaton EMAH06 power distribution unit (PDU) 16 AC outlet(s) 2U Black
€1,030.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton EMAH06 power distribution unit (PDU) 16 AC outlet(s) 2U Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
EMAH06 - MA 2U (309 32A 1P) 12XC13: 4xC19
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
Description
Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDUePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Managed |
| Mounting | Horizontal |
| Display | LCD |
| Product colour | Black |
| Form factor | Rackmount |
| Rack mounting | Yes |
| Cable colour | Black |
| Rack capacity | 2U |
| Ports & interfaces | |
| AC outlets quantity | 16 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| Serial ports quantity | 1 |
| Output connections | 12 x C13 & 4 x C19 |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Cable length | 3 m |
| LED indicators | Yes |
| Management features | |
| Management protocols | SNMP, Telnet |
| Firmware upgradeable via | Network, USB |
| Firmware upgradeable | Yes |
| Ergonomics | |
| Cable length | 3 m |
| LED indicators | Yes |
| Display | LCD |
| Power | |
| Maximum power | 7400 W |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Maximum current | 32 A |
| Maximum input current per phase | 32 A |
| AC input frequency | 50 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 225 x 87 x 445 mm |
| Weight | 5.6 kg |
| Width | 225 mm |
| Depth | 87 mm |
| Height | 445 mm |
| Package weight | 7.8 kg |
| Packaging data | |
| Package weight | 7.8 kg |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Rack mount kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Technical details | |
| Compliance certificates | RoHS |
